Algemeen
Fabrikant
Beetronics
Artikelnummer
12TS7
Productnaam

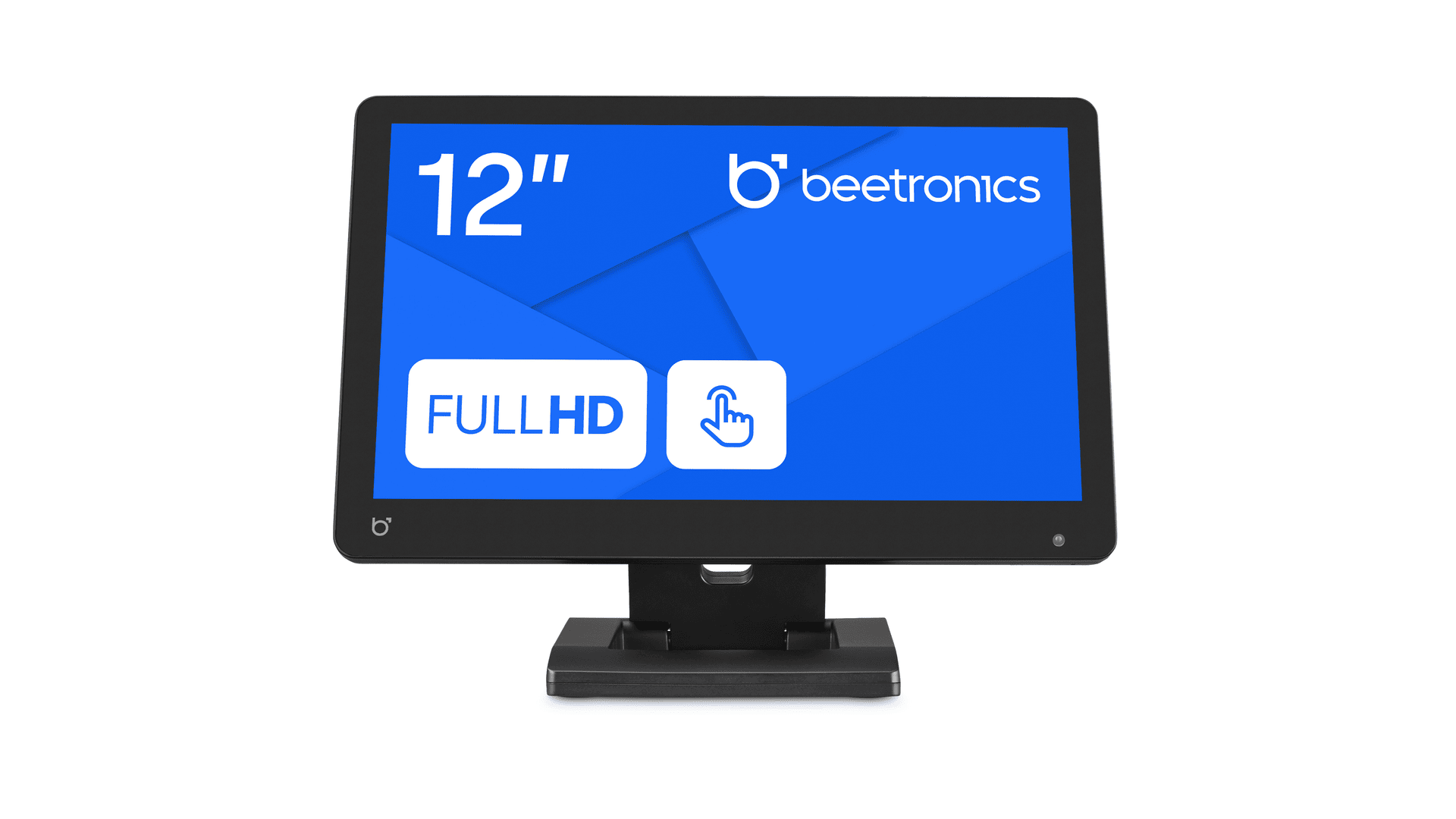

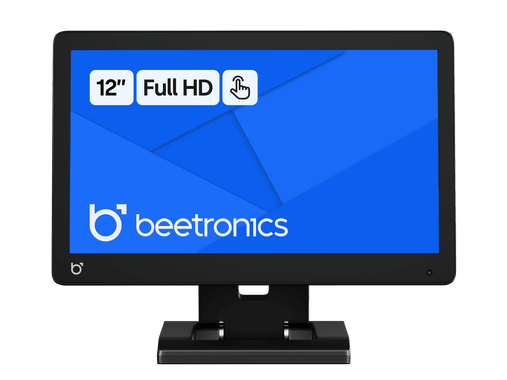

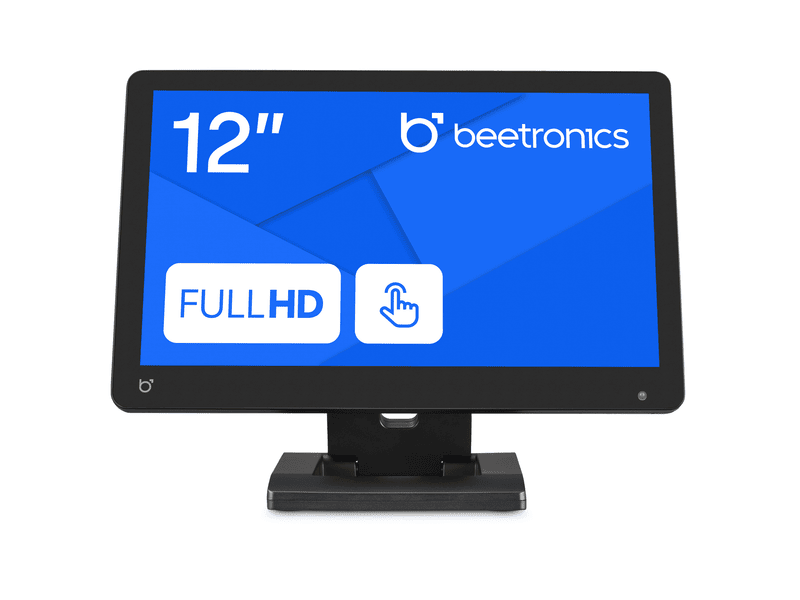

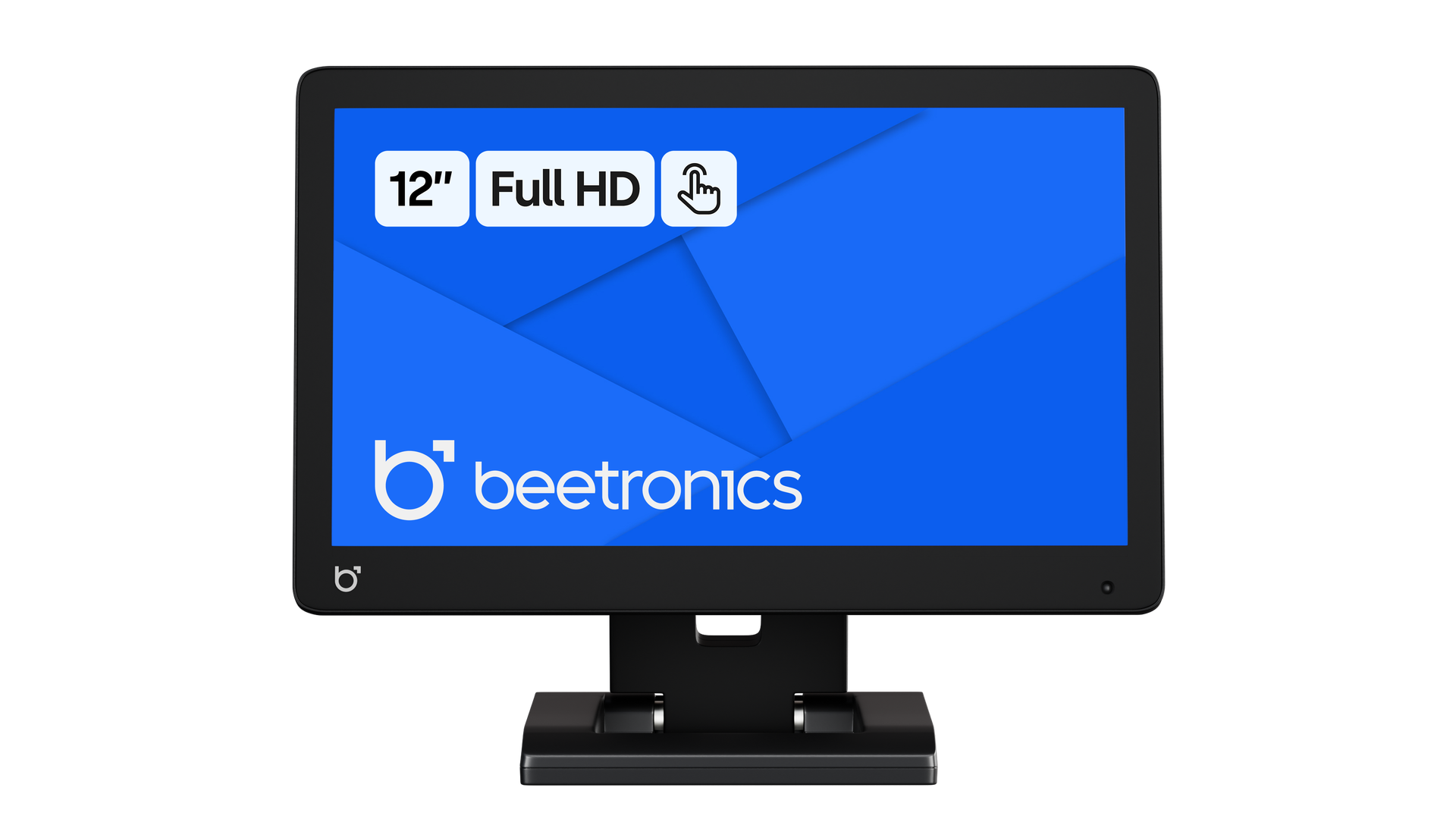

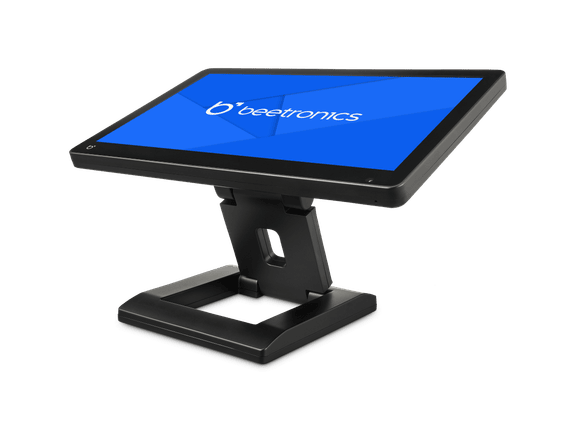

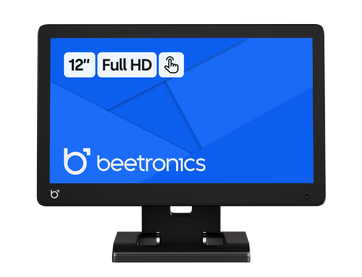

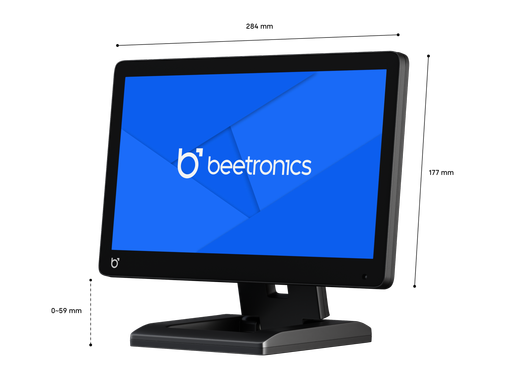

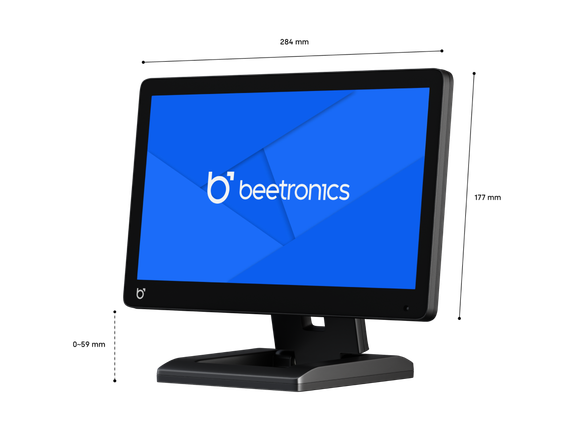

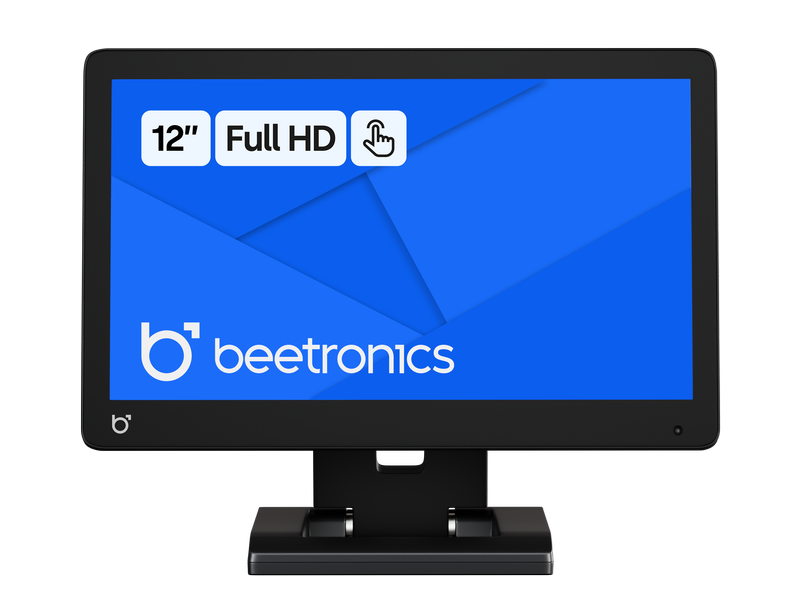

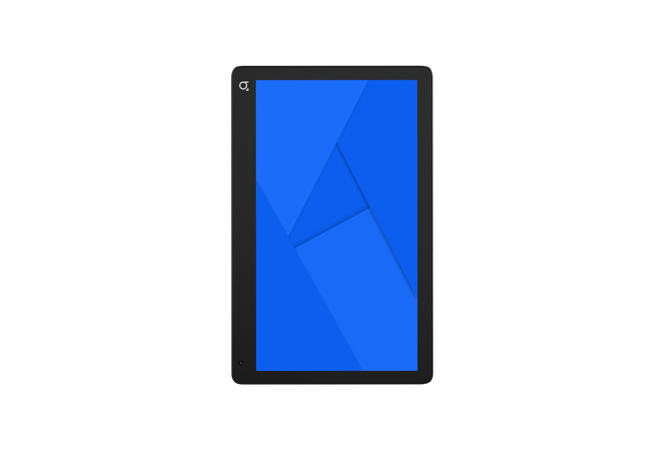

12 Inch Touchscreen
Garantie
2 jaar
Datasheet
Drivers
Gebruikershandleiding
Quickstart
Ondersteunde besturingssystemen
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
Alle Linux distributies
ChromeOS
Alle ChromeOS versies
Brightsign
Alle BrightsignOS versies
Samsung DeX
Alle Samsung DeX versies
Paneel
11.6 inch (297 mm)
IPS-LCD
16:9 (4:3 instelbaar)
10 ms
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
190 PPI
LED
500 cd/m2
1000:1
PAL/NTSC/SECAM
178° horizontaal, 178° verticaal
Gehard glas
Capacitief, 10-punts multitouch
Stylus, hand, handschoen

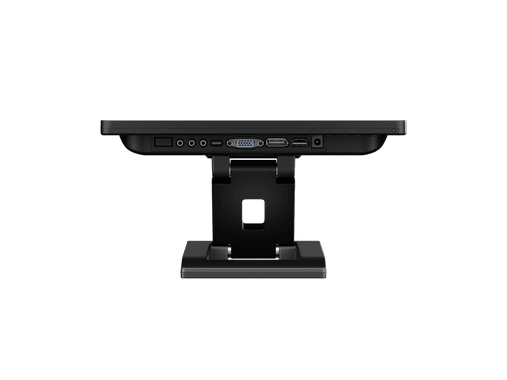

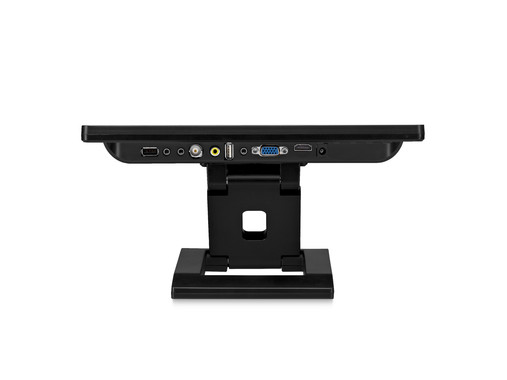

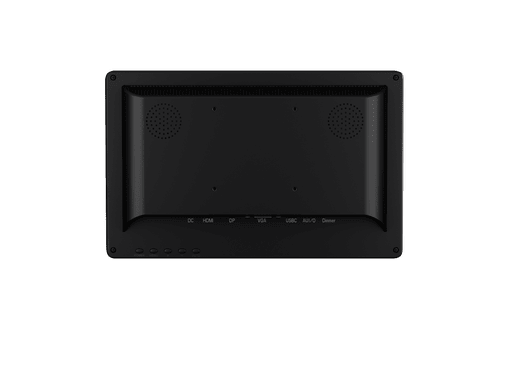

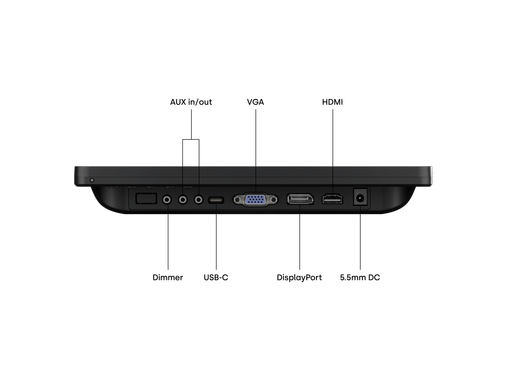

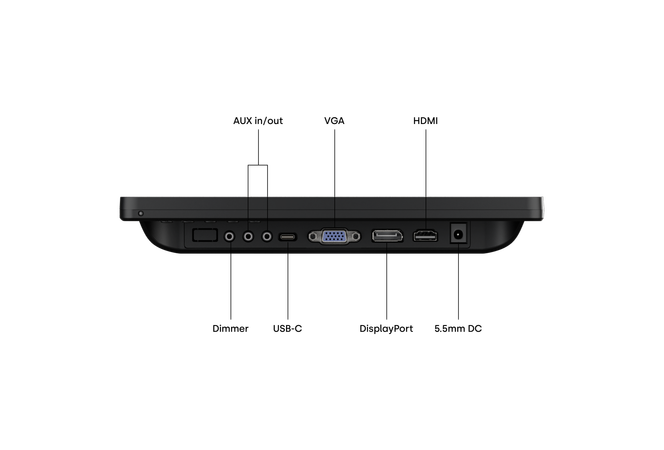

Aansluitingen
1x
1x
1x
1x ondersteunt video, audio en touch
Via de meegeleverde USB-C naar USB-A adapter. Deze activeert enkel de touch functionaliteit en dient gecombineerd te worden met HDMI, DisplayPort of VGA voor beeld.
1x
1x
Fysieke eigenschappen
Kleur
Zwart

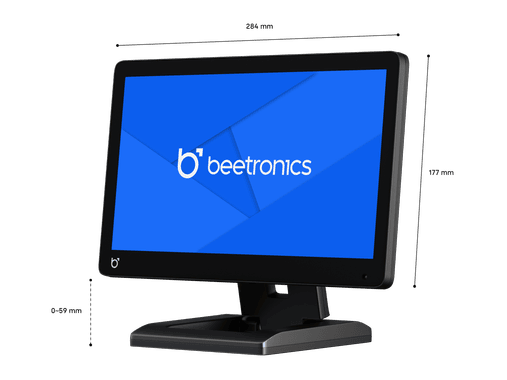

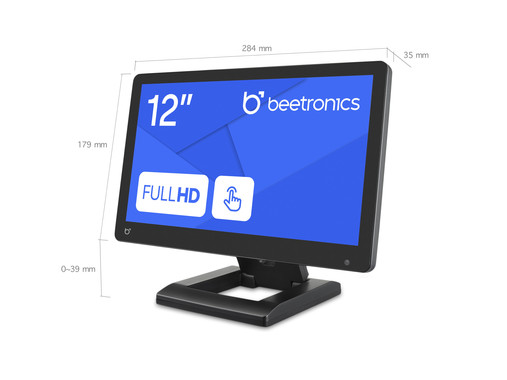

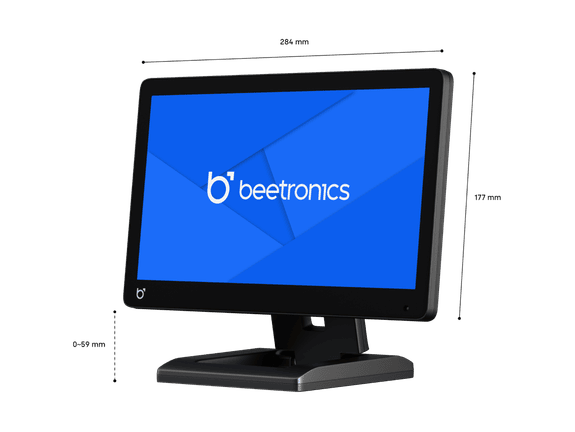

Afmetingen (zonder voetsteun)
284 x 179 x 32 mm
259 x 143 mm
700 gram (1100 gram met voetsteun)
Technische tekening
3D tekening
Eigenschappen en functies
Geïntegreerde speakers
Vergrendelbare bedieningsknoppen
Automatisch aan bij stroom/signaal
Instelbare helderheid

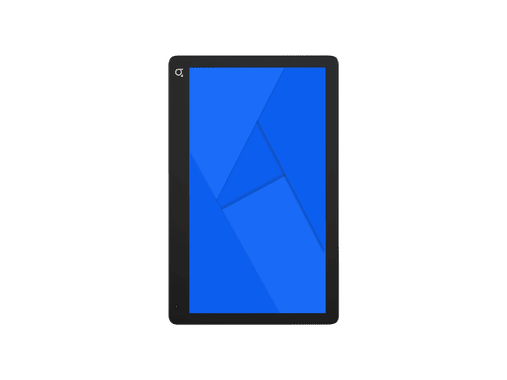

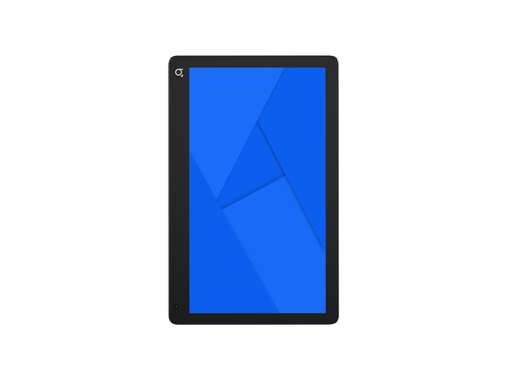

Landscape, portrait
Energie
DC 9-36V
Gemiddeld 10.2 W (on), 0.4 W (standby)
Externe DC (voedingsadapter meegeleverd)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC plug 2.1mm x 5.5mm
Omgeving
Maximale continue bedrijfstijd
24/7
Bedrijfstemperatuur
-20°C tot +60°C
Opslag temperatuur
-20°C tot +70°C
Luchtvochtigheid
20% - 85% niet-condenserend
Montage
Inbouw
Mogelijk, geen accessoires beschikbaar

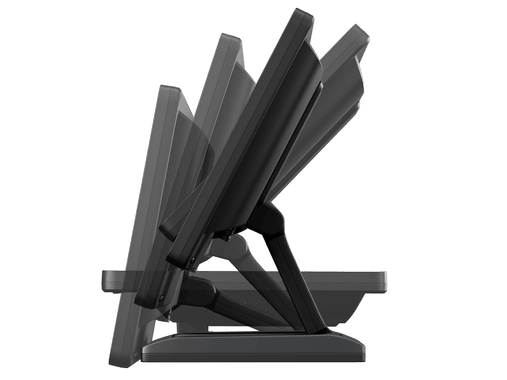

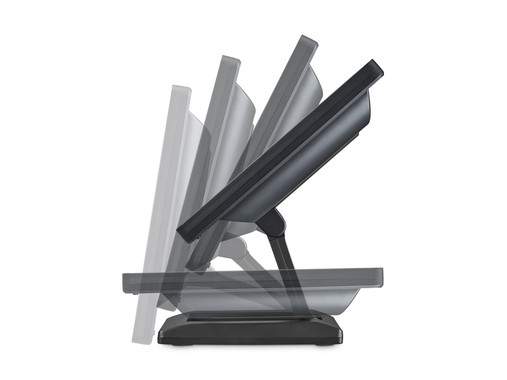

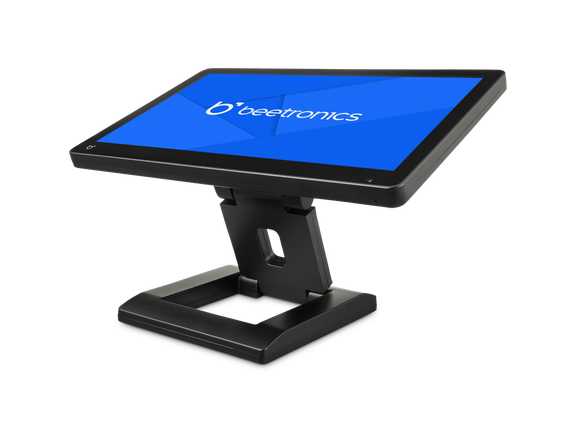

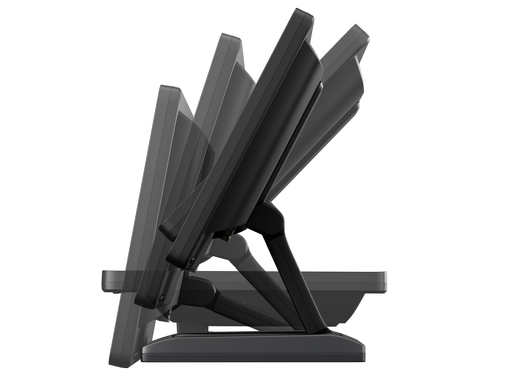

Voetsteun
Certificeringen & keurmerken
IP65 front paneel
IK08
Certificeringen
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)

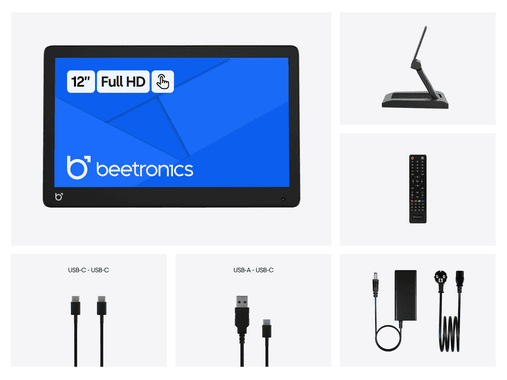

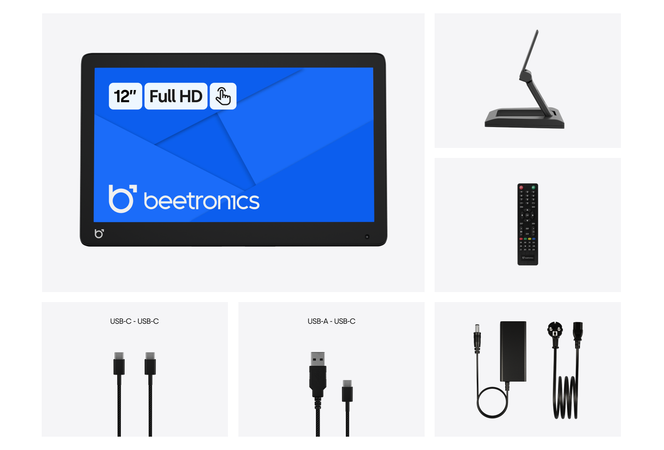

Inhoud verpakking
Standaard inbegrepen
Touchscreen, USB-C naar USB-C kabel, USB-C naar USB-A kabel, afstandsbediening, netadapter, handleiding
Compatible accessoires
Infrarood verlengkabel
Rack montage
Wandmontage
Voetsteun
VDK3 standaard inbegrepen
Touch pen
