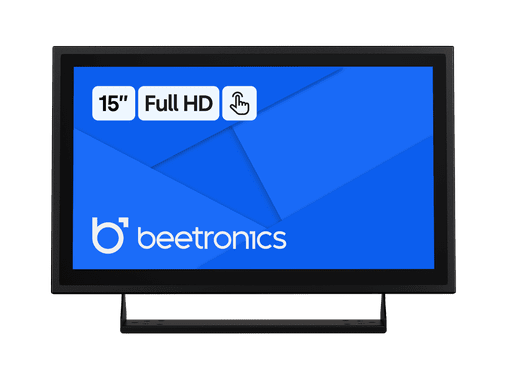

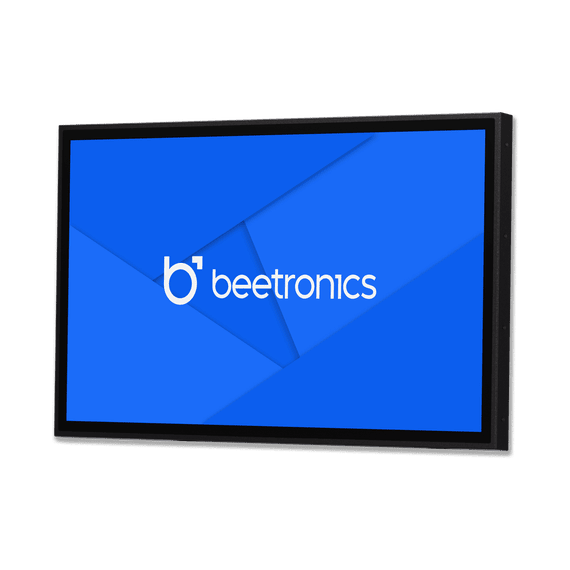

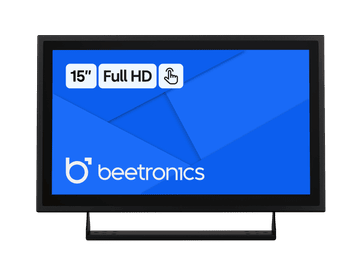

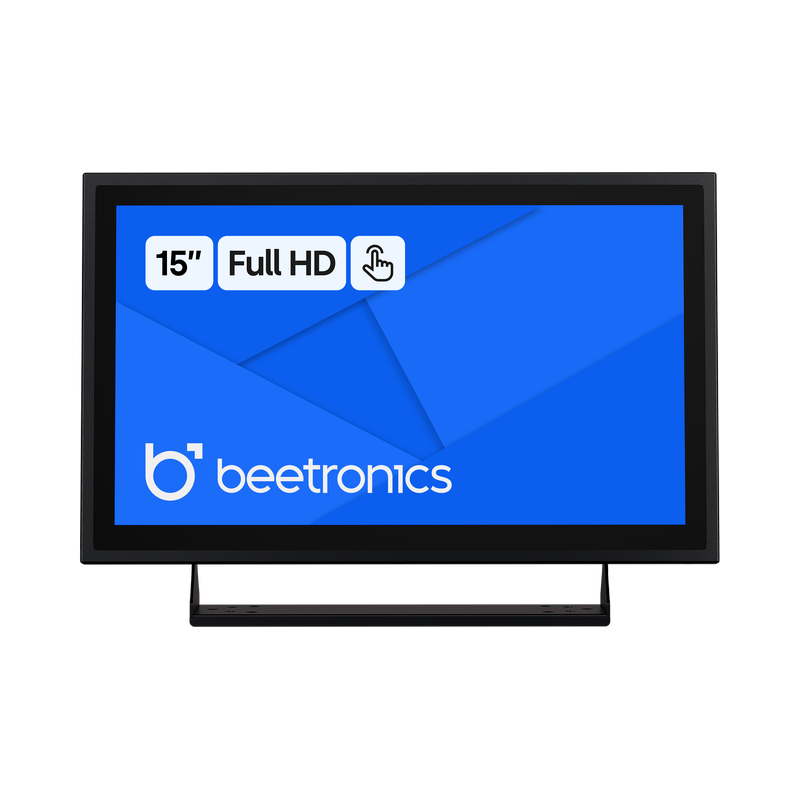

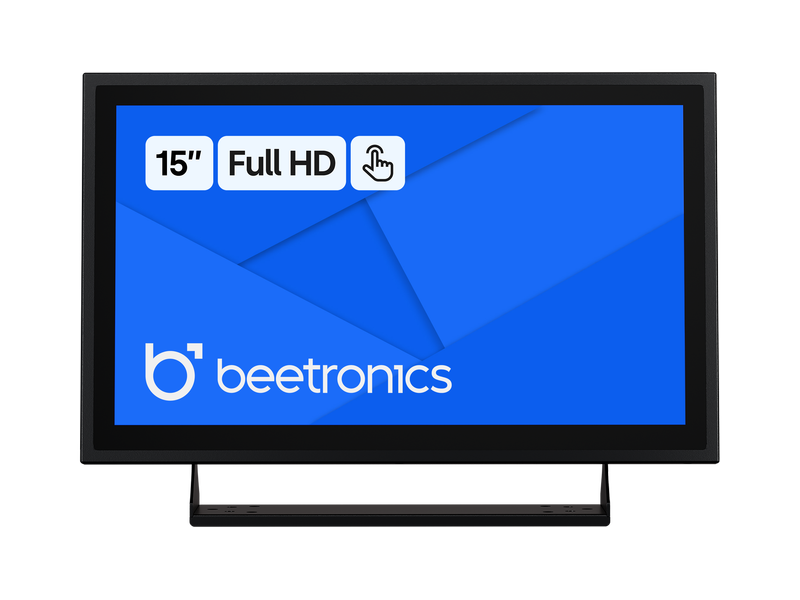

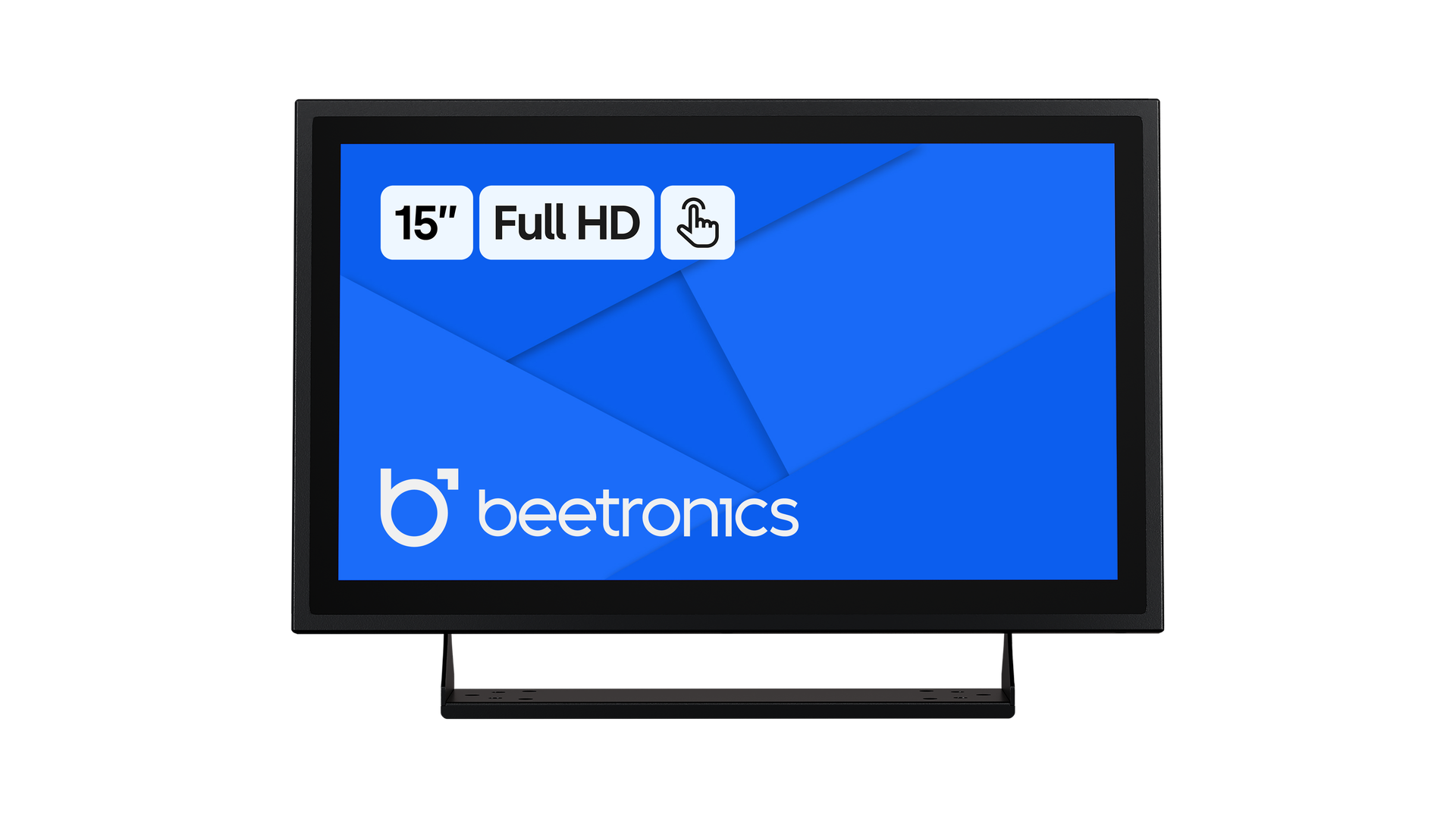

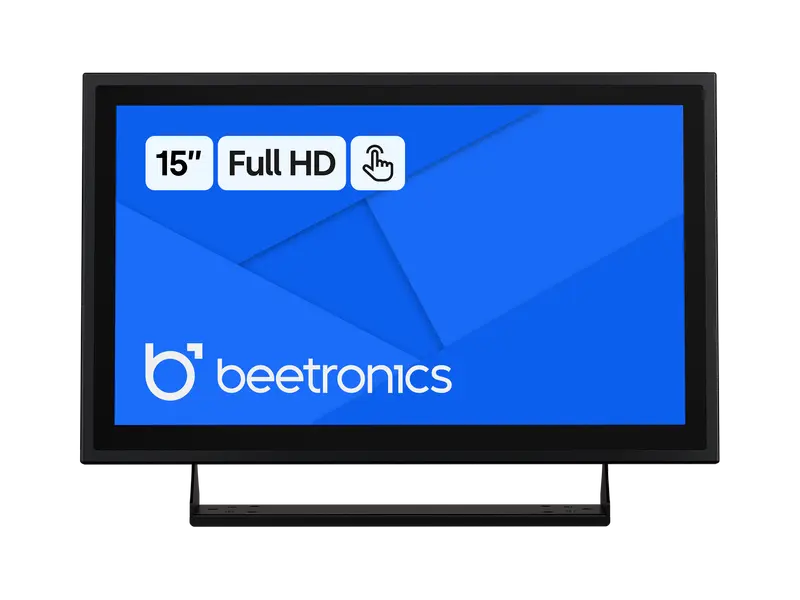

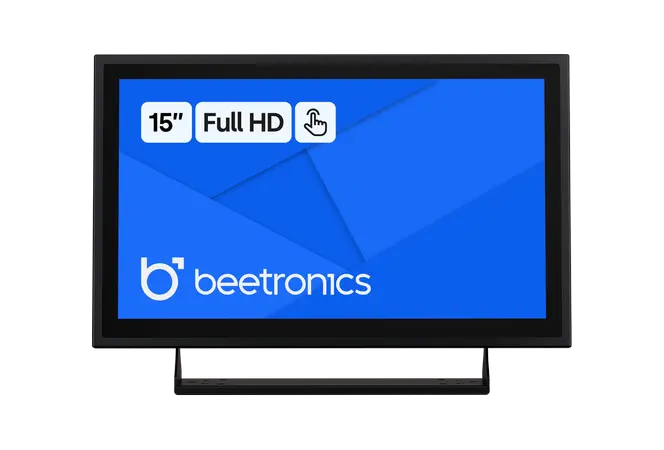

This Full HD 15 inch touchscreen is equipped with a reliable multi-touch panel which ensures accurate operation. The 15TS7M provides a razor-sharp image with a wide viewing angle of 178 degrees and is compatible with Windows, Mac & Linux operating systems. The touchscreen monitor is designed for professional applications and suitable for intensive use.
The 15-inch touchscreen is equipped with a Full HD IPS panel. This ensures a razor-sharp image display, a very wide viewing angle of 178 degrees and a true-to-life color reproduction. The 15TS7M has a capacitive multi-touch screen that can process 10 pressure points simultaneously. This ensures very accurate operation and support for swiping, zooming, etc.

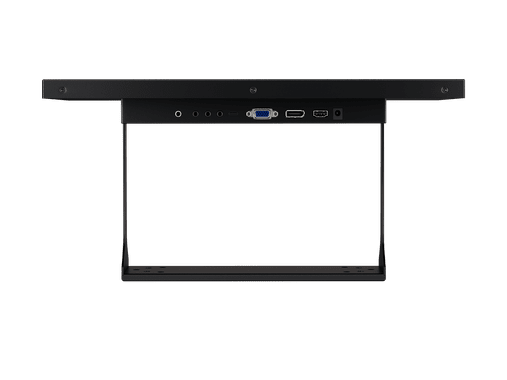

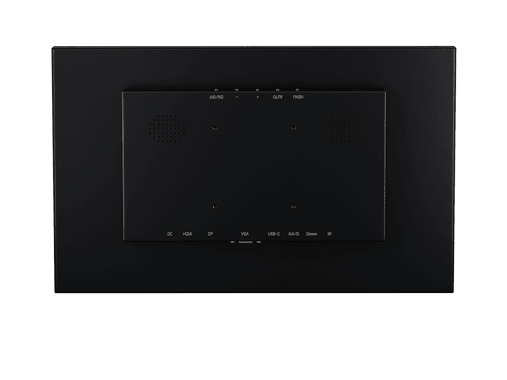

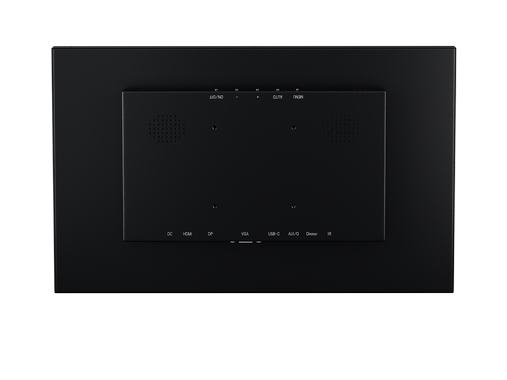

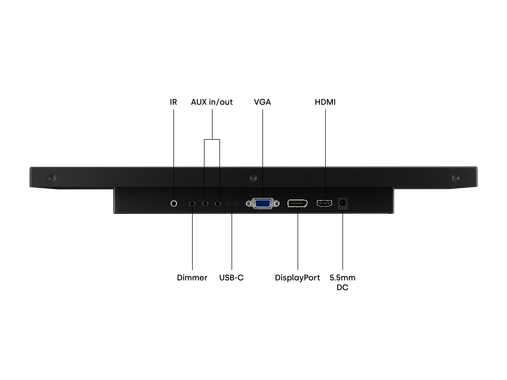

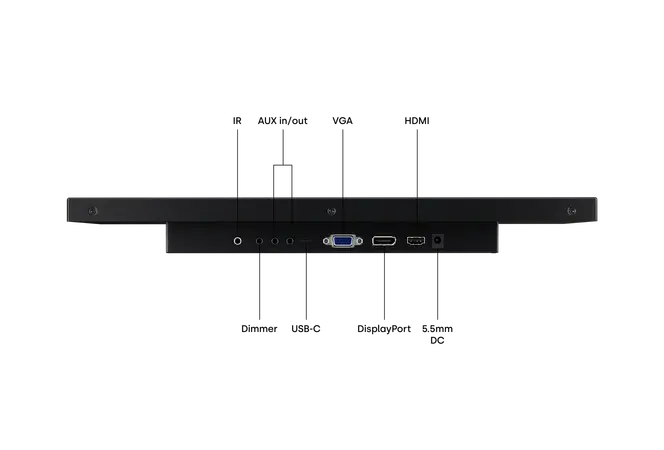

The 15TS7M is compatible with Windows, Mac & Linux operating systems. For the image display you can use the HDMI, VGA, BNC or RCA connection. In addition, connect the USB connection to control the touch panel. The 15 inch touchscreen monitor is automatically recognized and is immediately ready for use.

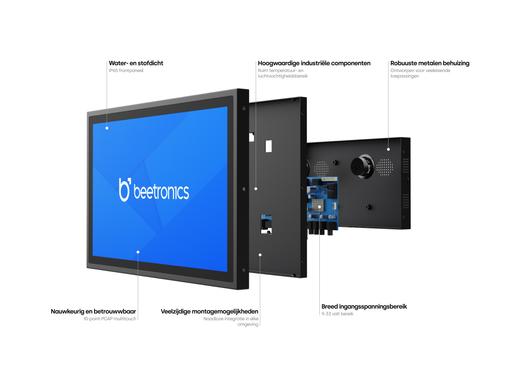

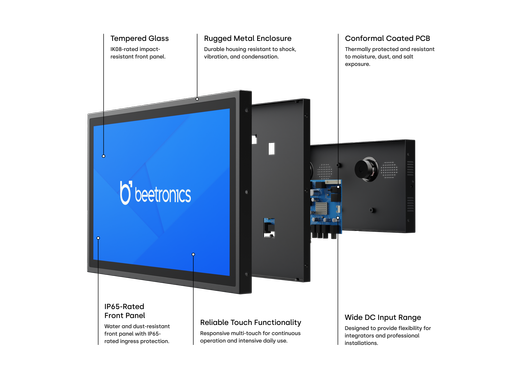

De 15 inch touchscreen monitor is geproduceerd met hoogwaardige componenten welke een betrouwbare werking garanderen in iedere omgeving. De 15TS7M ondersteunt een inputvoltage van 9 - 28 volt en beschikt over een IP65 front paneel. Dit maakt de voorzijde van de monitor water- en stofdicht. Het paneel is volledig dimbaar en geschikt voor continu gebruik.

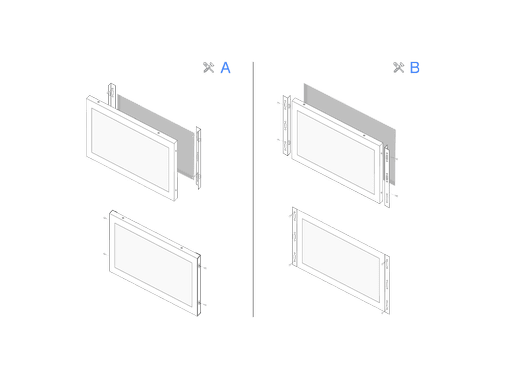

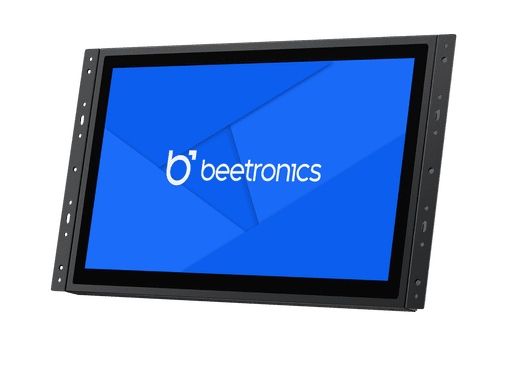

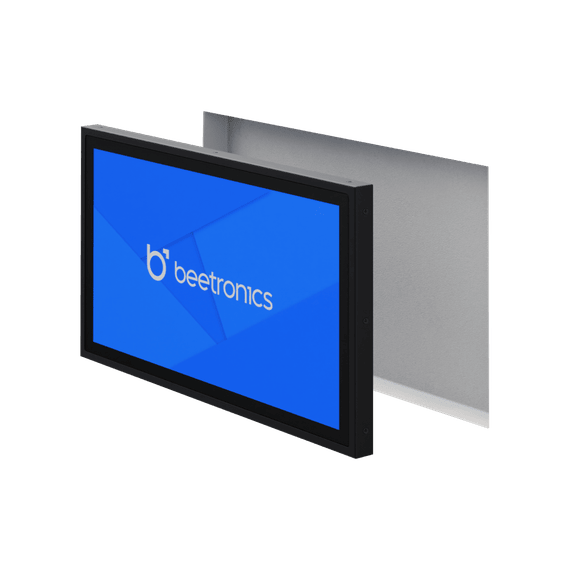

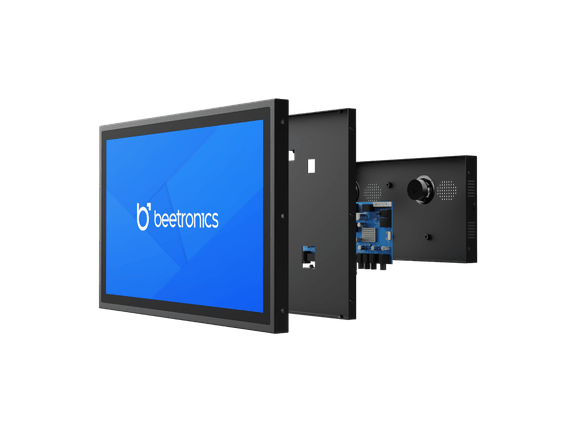

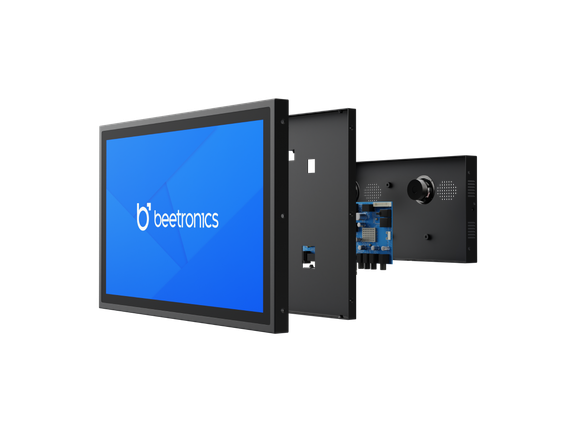

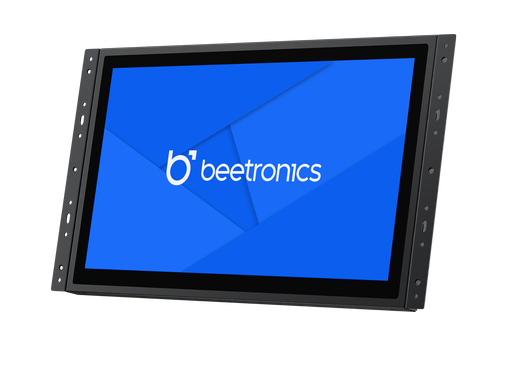

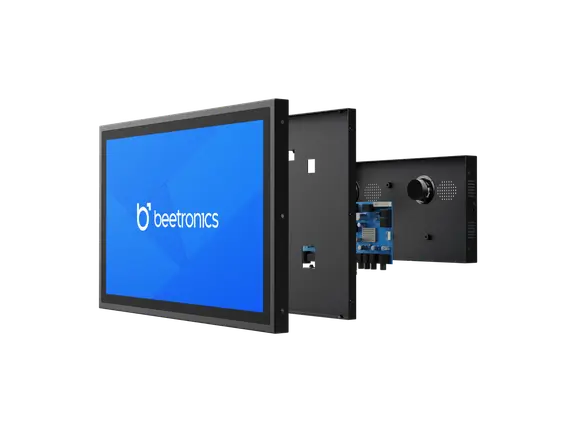

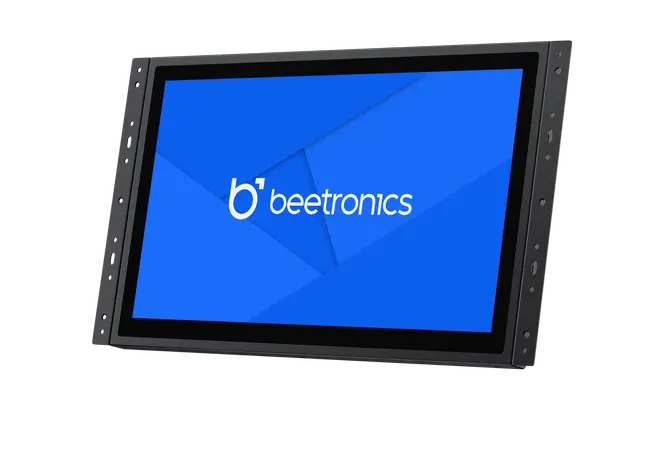

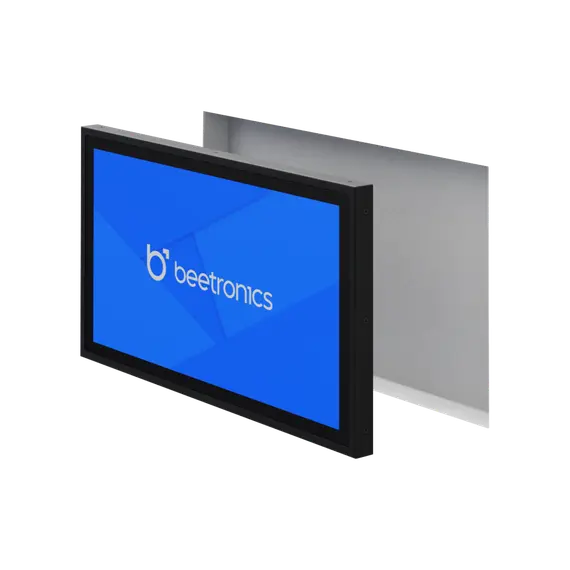

De metalen 15 inch touchscreen monitor is dankzij diverse montagemogelijkheden in iedere applicatie te integreren. De meegeleverde montagestrips en de eenvoudig uiteen te nemen behuizing bieden verschillende inbouwopties waardoor de monitor naadloos kan worden geïntegreerd in iedere omgeving.

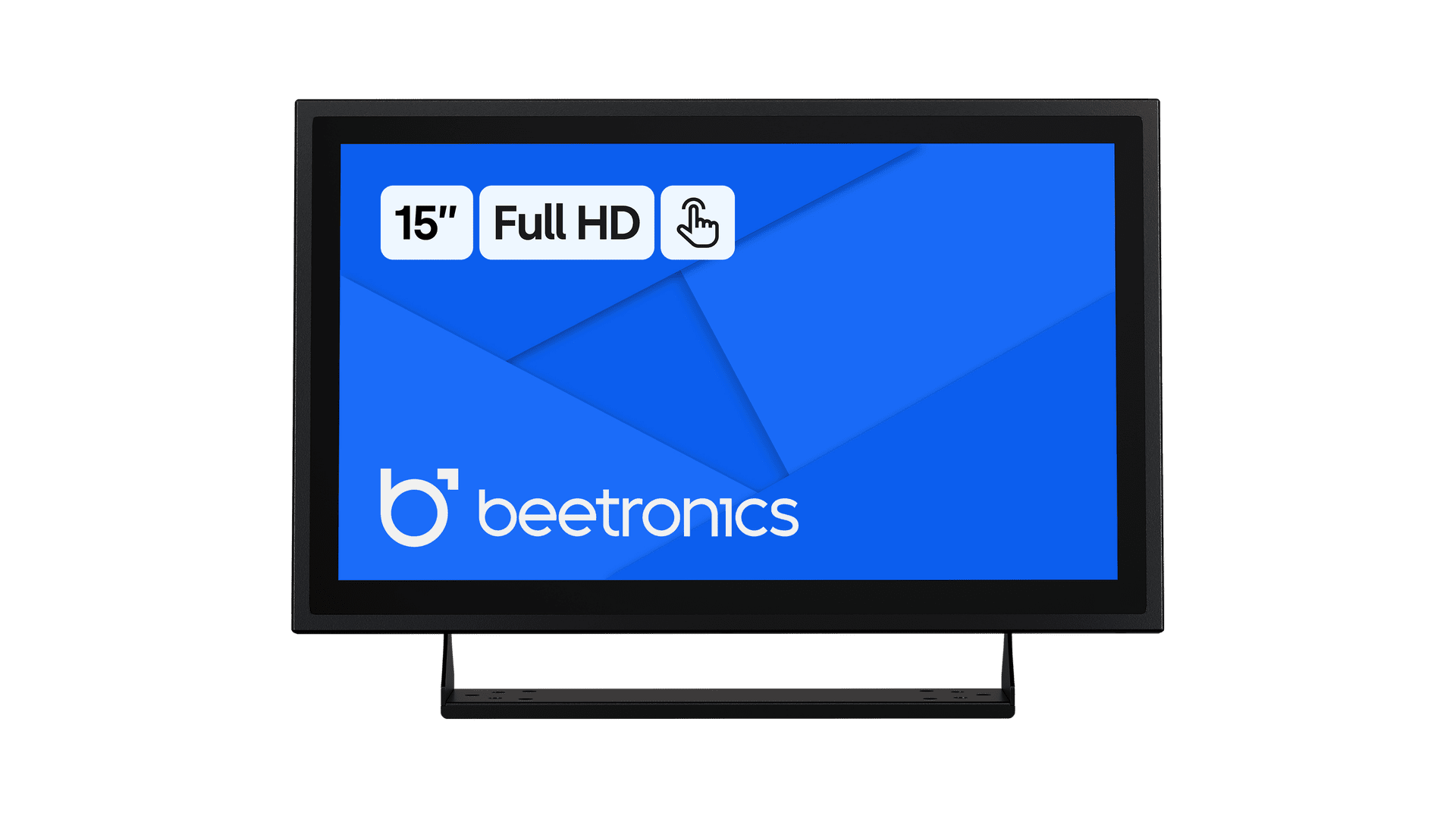

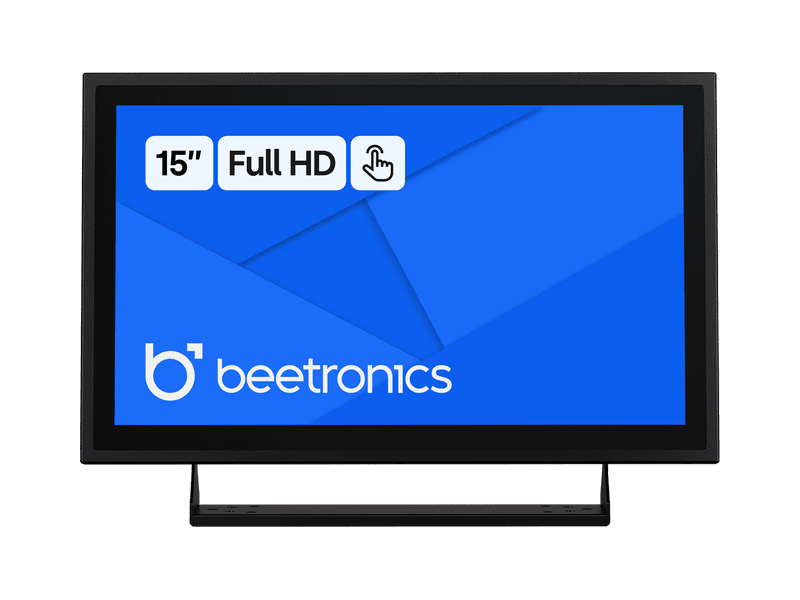

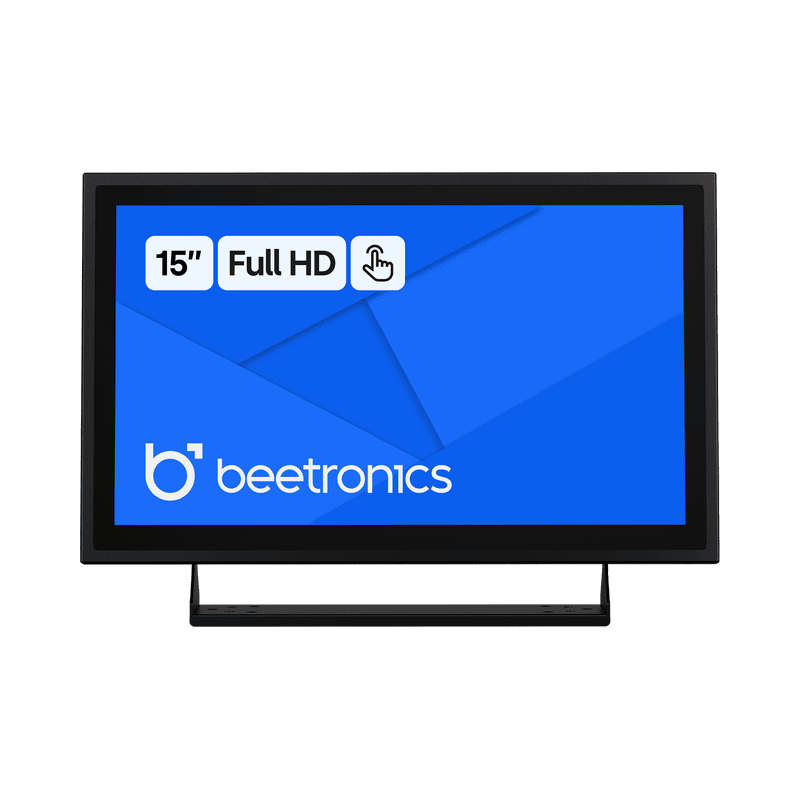

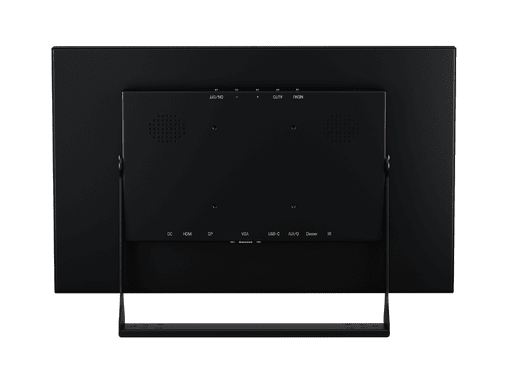

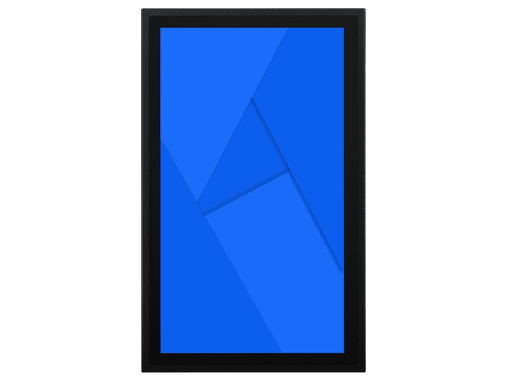

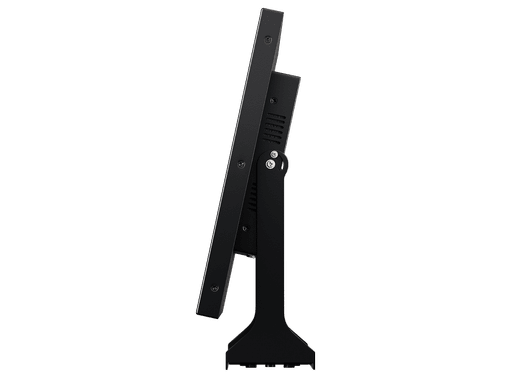

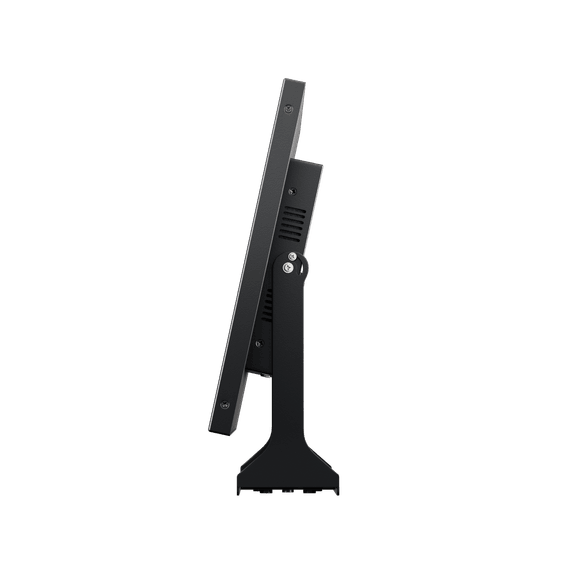

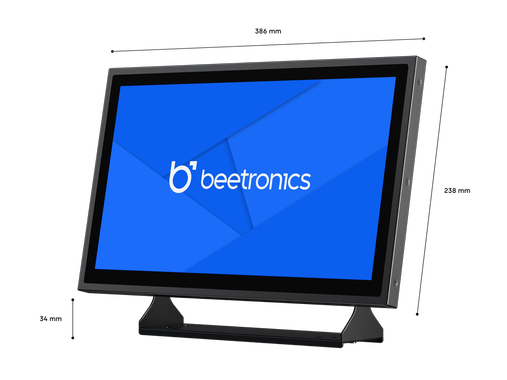

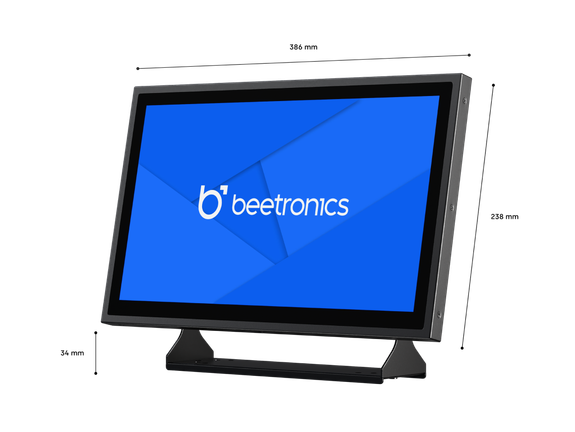

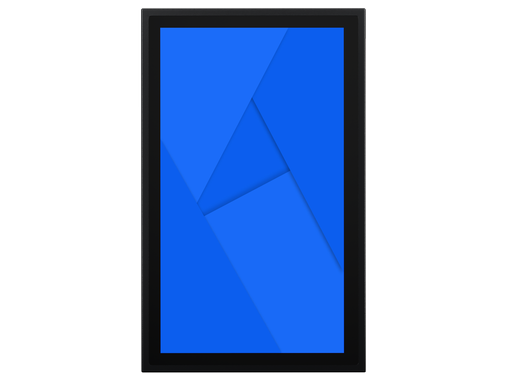

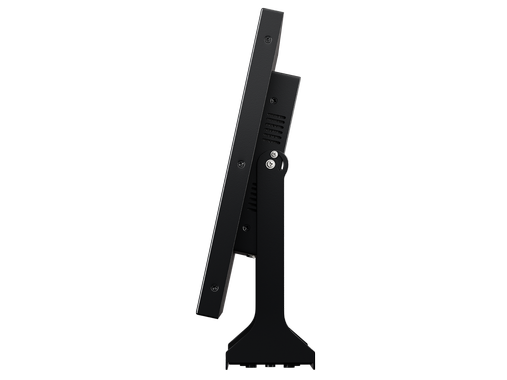

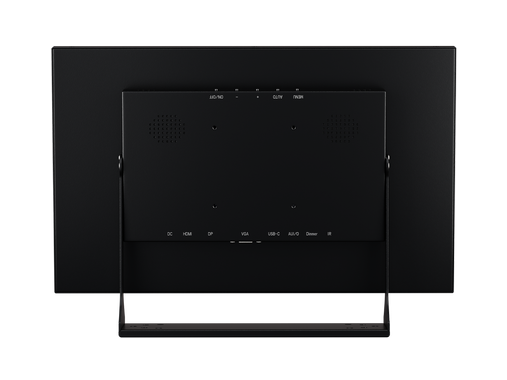

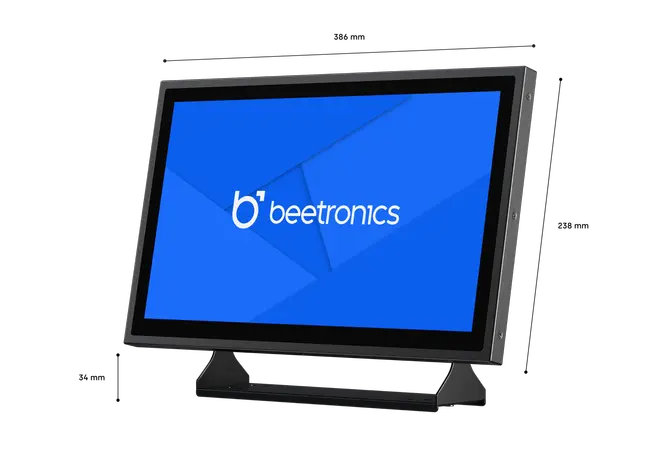

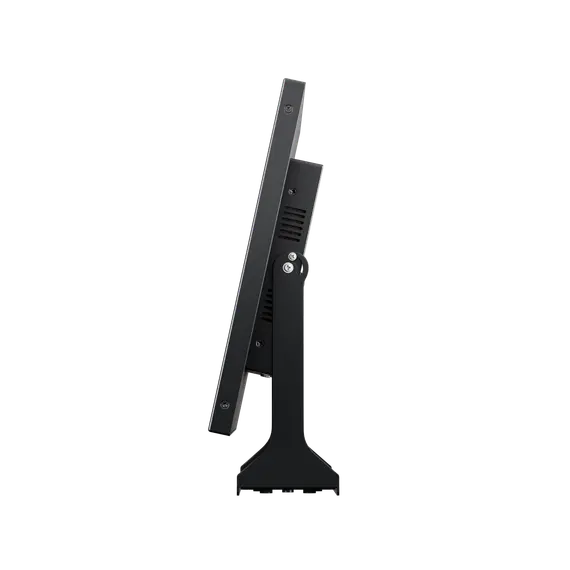

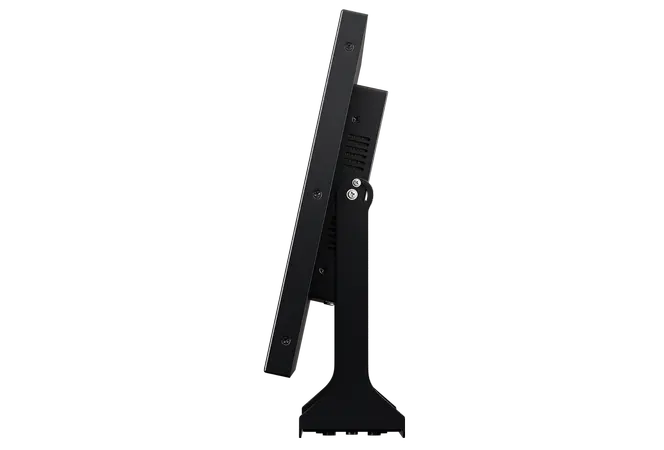

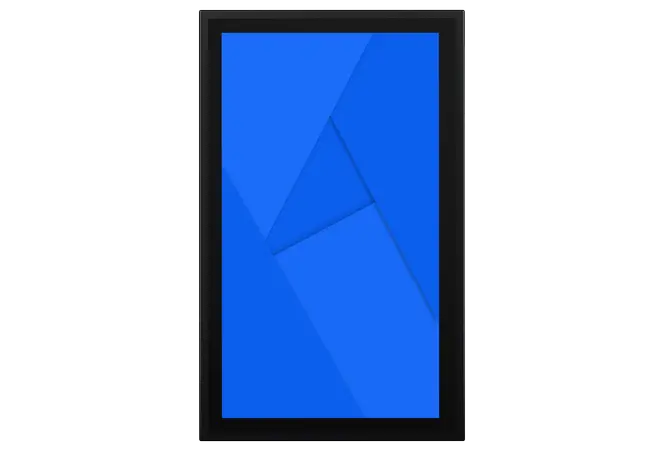

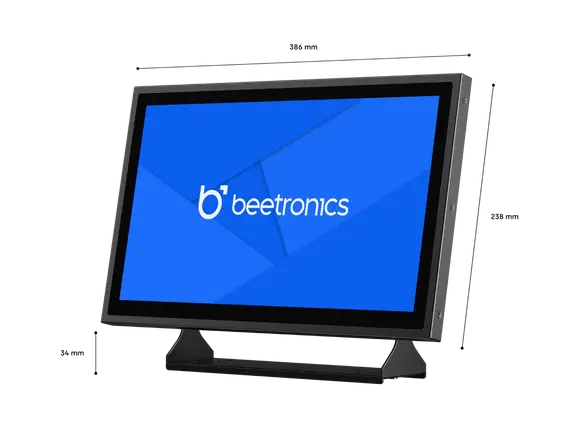

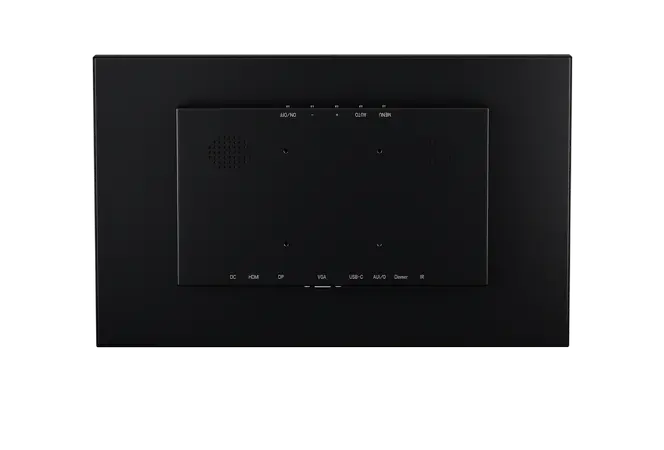

The Beetronics 15TS7M is equipped with a tilting footrest. The footrest can be easily removed if desired so that the 75mm VESA mount can be used. This allows the touchscreens to be attached to a universal wall bracket, in both landscape and portrait mode.
Algemeen | |
---|---|
Fabrikant |
Beetronics
|
Artikelnummer |
15TS7M
|
Vorig model |
15TS5M
|
Productnaam |
15 inch touchscreen metaal
|
Garantie |
2 jaar
|
Datasheet | |
Handleiding | |
Drivers |
Ondersteunde besturingssystemen | |
---|---|
Windows |
Windows 8, 10, 11
|
Windows Embedded |
Windows Embedded 8 Industry, Windows Embedded 8.1 Industry, Windows IoT Enterprise
|
macOS |
Catalina, Big Sur, Monterey
|
Linux |
Alle Linux distributies
|
Chrome OS |
Alle ChromeOS versies
|
Brightsign |
Alle BrightsignOS versies
|
Paneel | |
---|---|
Type |
LED-IPS
|
Schermdiagonaal |
15.5 inch (395 mm)
|
Beeldverhouding |
16:9 (4:3 instelbaar)
|
Native resolutie |
1920 x 1080
|
Ondersteunde resoluties |
1920 x 1080 (max), 640 x 480 (min)
|
Pixels per inch |
146 PPI
|
Kijkhoek |
178° horizontaal, 178° verticaal
|
Kleurcoderingssysteem |
PAL/NTSC/SECAM
|
Helderheid |
350 cd/m2
|
Contrast |
700:1
|
Touch technologie |
Capacitief, 10-punts multitouch
|
Touch bediening |
Stylus, hand, handschoen
|

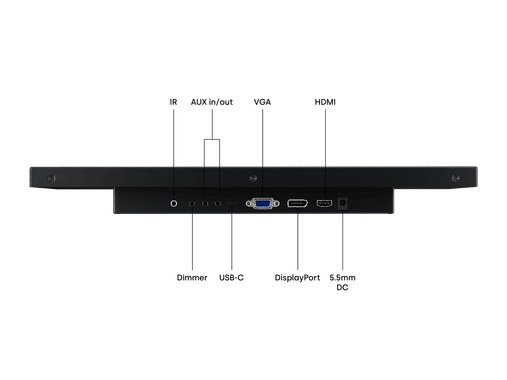

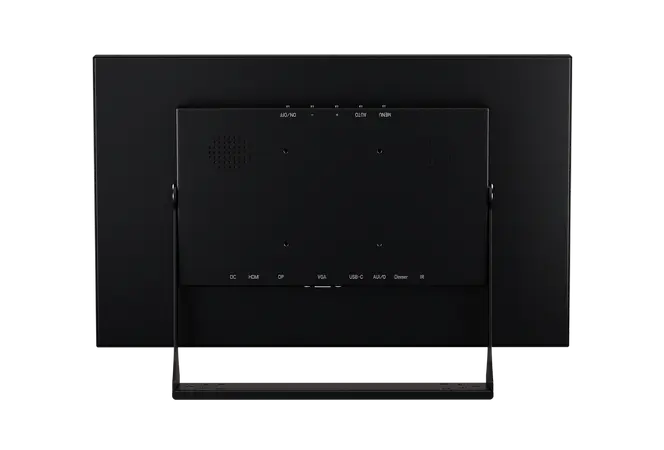

Aansluitingen | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
3.5mm jack ingang |
1x
|
3.5mm jack uitgang |
1x
|
USB |
Alleen voor touchscreen functionaliteit
|
Fysieke eigenschappen | |
---|---|
Kleur |
Zwart
|
Gewicht |
2700 gram (3500 gram met voetsteun)
|

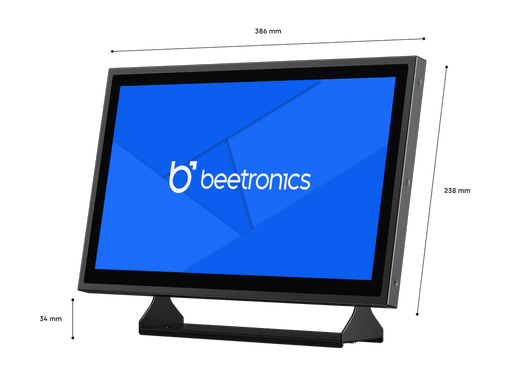

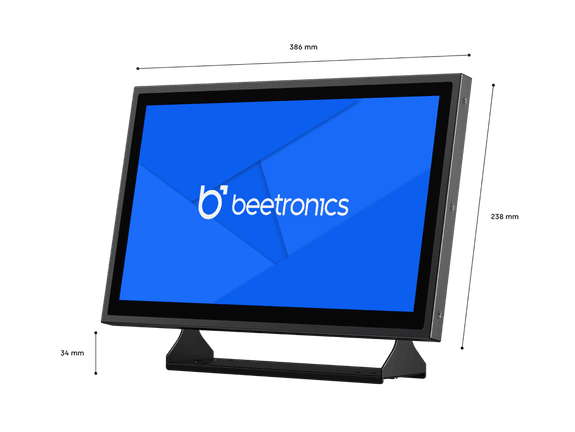

Breedte |
386 mm
|
Hoogte |
238 mm
|
Diepte |
41 mm
|
Afmetingen paneel |
344 x 193 mm
|
Technische tekening | |
3D tekening |
Eigenschappen en functies | |
---|---|
Audio |
Geïntegreerde speakers
|
Toetsblokkering |
Vergrendelbare bedieningsknoppen
|
Auto-on |
Automatisch aan bij stroom/signaal
|
Dimbaar backlight |
Instelbare helderheid
|
Spiegelfunctie |
Beeld is horizontaal en verticaal te spiegelen
|
Energie | |
---|---|
Ingangsspanning |
DC 9-28V
|
Netadapter |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Energieverbruik |
7.8 Watt
|
Omgeving | |
---|---|
Bedrijfstemperatuur |
-20°C tot +60°C
|
Opslag temperatuur |
-20°C tot +70°C
|
Luchtvochtigheid |
20% - 90% niet-condenserend
|
Montage | |
---|---|
Wandmontage |
VESA (75 mm)
|
Inbouw |
2 Montagestrips meegeleverd
|
Voetsteun |
Verstelbaar & afneembaar
|
Certificeringen & keurmerken | |
---|---|
IP rating |
IP65 front paneel
|
Certificeringen |
CE, FCC, RoHS, REACH, IC, UKCA, e-Mark
|
Inhoud verpakking | |
---|---|

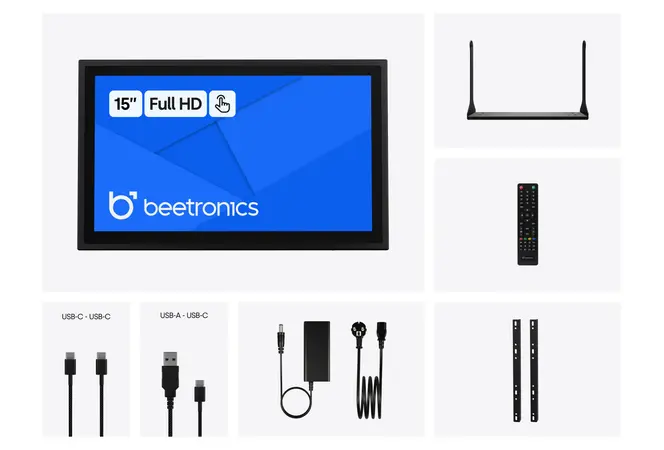

Standaard inbegrepen |

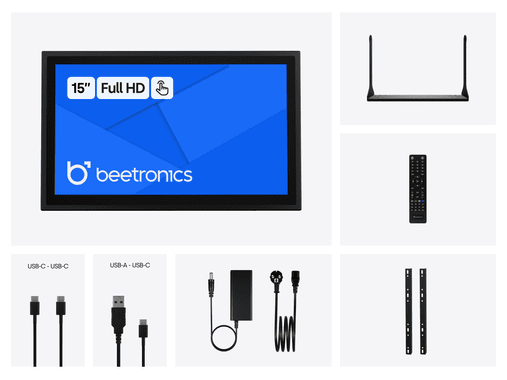

Touchscreen, Voetsteun, Afstandsbediening, USB kabel, Netadapter, Montagestrips, Handleiding
|
Compatible accessoires | |
---|---|
Infrarood verlengkabel | |
Dimmer | |
Rack montage | |
Wandmontage | |
Voetsteun |
Handleiding | Download PDF |
Technische tekening | Download PDF |
3D tekening | Download CAD/STP |
Datasheet | Download PDF |
Drivers | Download touchscreen drivers |
