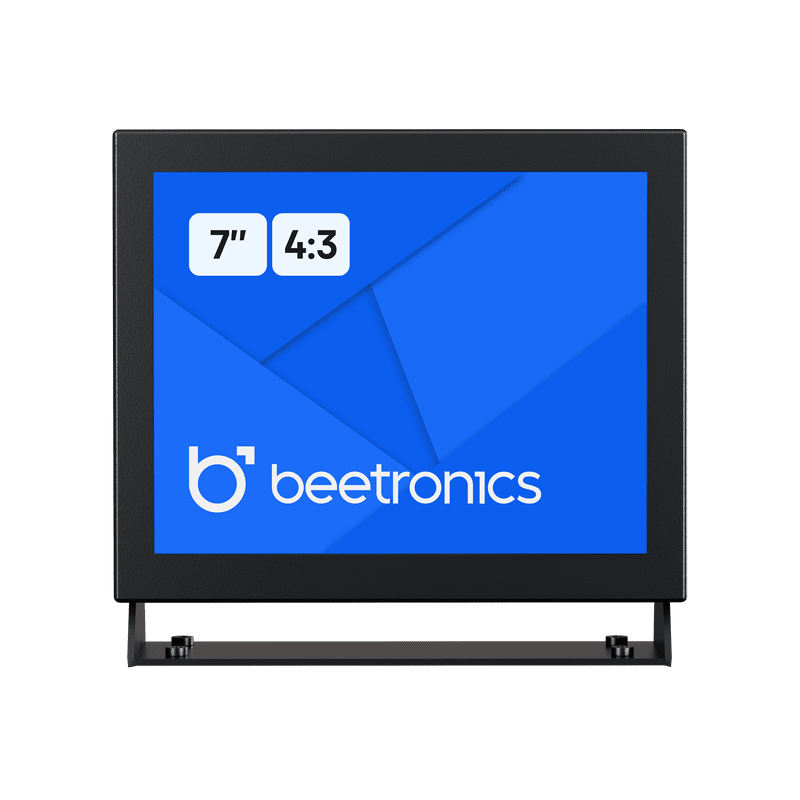

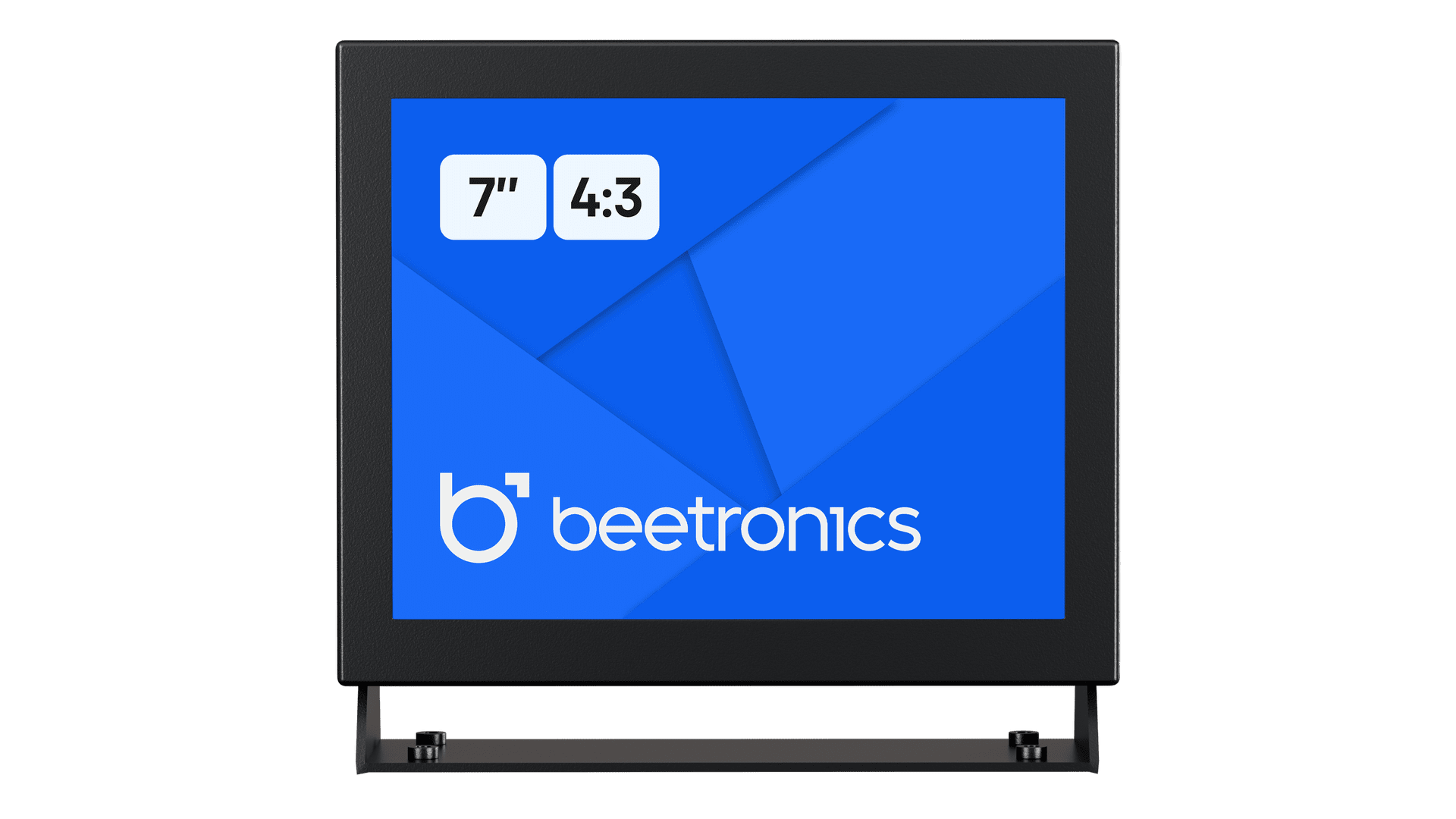

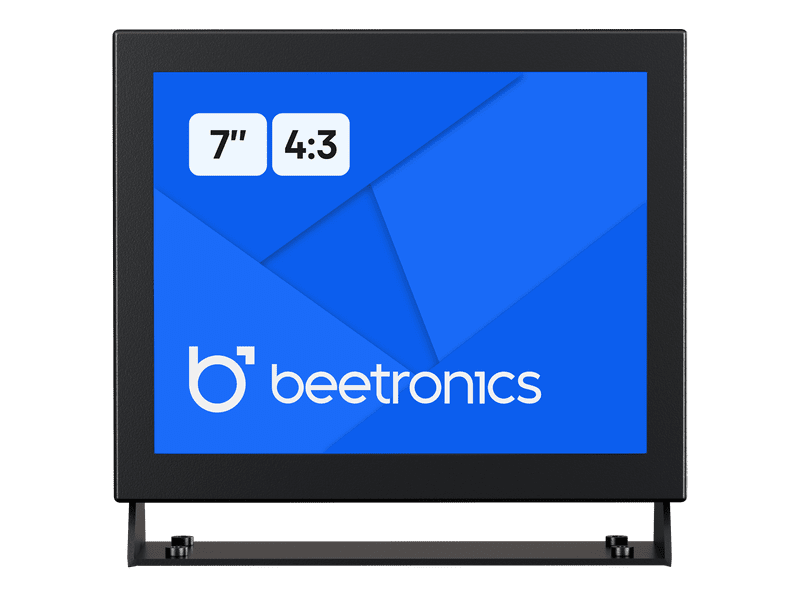

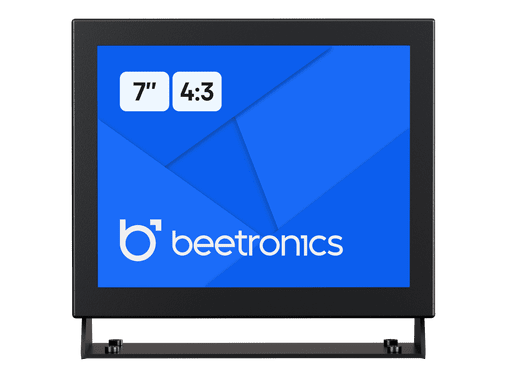

This 7 inch monitor is equipped with an LED IPS panel, which ensures a sharp and colorful image reproduction. The monitor has a 4:3 aspect ratio and is equipped with a robust metal housing. The screen has an HDMI, VGA, BNC and RCA connection and is suitable for desktop, flush-mounted and wall mounting.

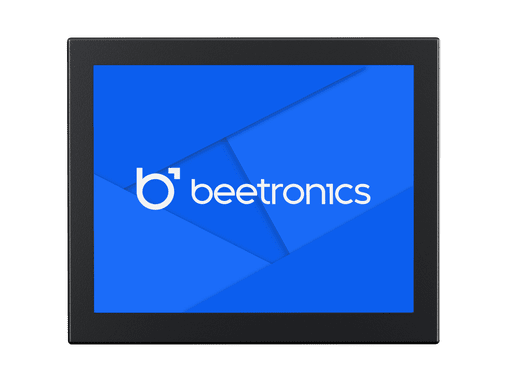

The 7 inch monitor is equipped with an IPS panel with 4:3 aspect ratio. The monitor has an excellent viewing angle of 178 degrees and a true-to-life color reproduction. The matte panel ensures that you do not suffer from annoying reflections on the screen. Contrast and color are easy to set as desired.

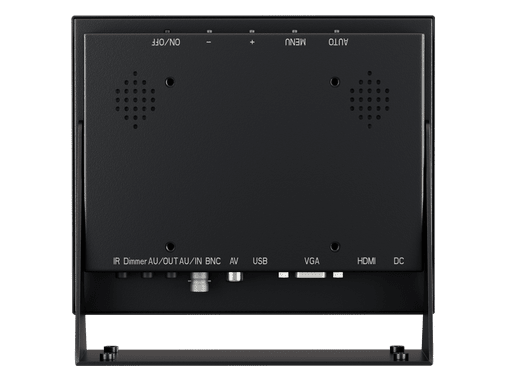

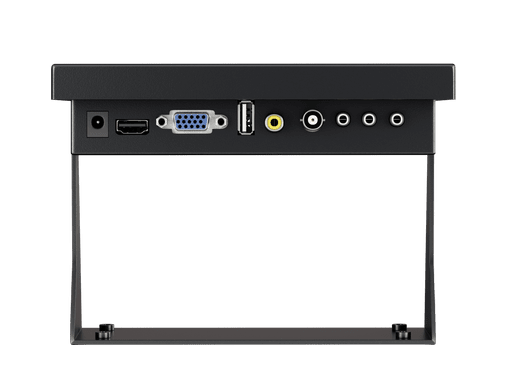

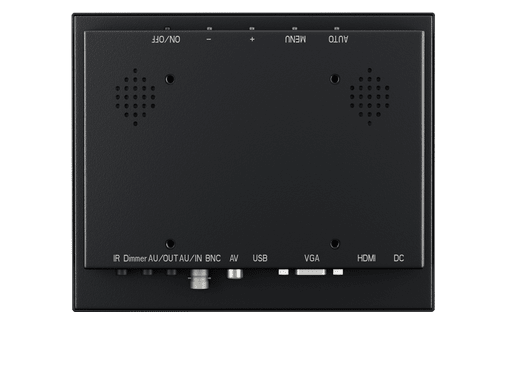

The 7 inch monitor is equipped with an HDMI, VGA, BNC and RCA-Tulip connection. The connections are located on the back of the monitor and are directed downwards. The monitor can be set to turn on automatically when there is a power or a video signal

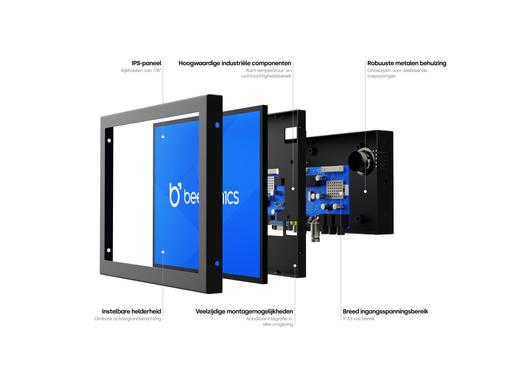

The 7VG7M supports an input voltage of 9-28 volts and features a fully dimmable panel. The monitor is produced with high-quality components that guarantee reliable operation in any environment. The 7 inch monitor is ideal for professional applications and is suitable for continuous use.

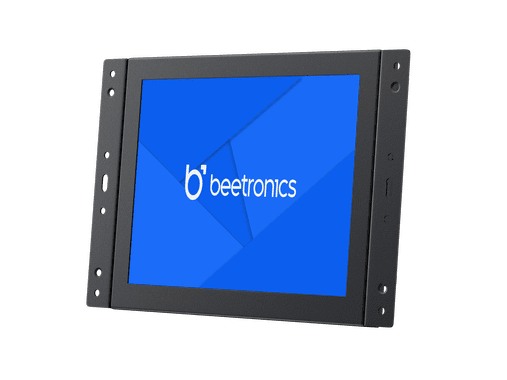

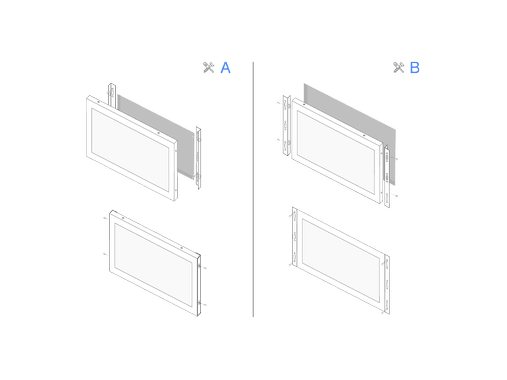

The metal 7 inch monitor can be integrated into any application thanks to various mounting options. The included mounting strips and the easy-to-disassemble housing offer a variety of built-in options that allow the monitor to be seamlessly integrated into any environment.

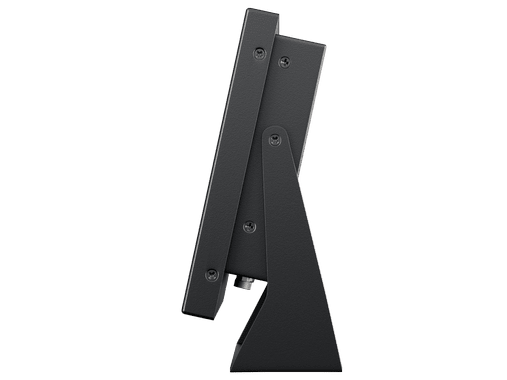

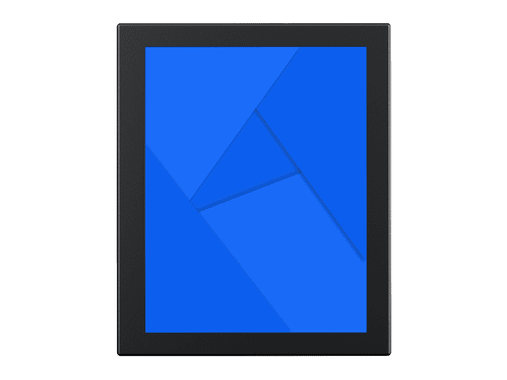

De Beetronics 7VG7M is voorzien van een kantelbare voetsteun. De voetsteun is indien gewenst eenvoudig te verwijderen zodat gebruik gemaakt kan worden van de 75mm VESA mount. Hiermee kan de monitor bevestigd worden aan een universele muurbeugel, zowel in landscape als portrait modus.
Algemeen | |
---|---|
Fabrikant |
Beetronics
|
Artikelnummer |
7VG7M
|
Productnaam |
7 inch monitor metaal (4:3)
|
Garantie |
2 jaar
|
Datasheet | |
Handleiding |
Paneel | |
---|---|
Type |
LED
|
Schermdiagonaal |
7 inch (178 mm)
|
Beeldverhouding |
4:3
|
Native resolutie |
1024 x 768
|
Ondersteunde resoluties |
1920 x 1200 (max), 640 x 480 (min)
|
Pixels per inch |
182 PPI
|
Kleurcoderingssysteem |
PAL/NTSC/SECAM
|
Helderheid |
250 cd/m2
|
Contrast |
800:1
|
Aansluitingen | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
3.5mm jack ingang |
1x
|
3.5mm jack uitgang |
1x
|
USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
Fysieke eigenschappen | |
---|---|
Kleur |
Zwart
|
Gewicht |
800 gram (1000 gram met voetsteun)
|

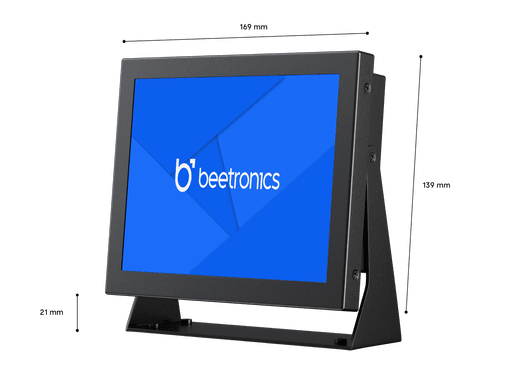

Breedte |
168 mm
|
Hoogte |
139 mm (+ 21 mm met voetsteun)
|
Diepte |
36 mm
|
Afmetingen paneel |
143 x 107 mm
|
Technische tekening | |
3D tekening |
Eigenschappen en functies | |
---|---|
Audio |
Geïntegreerde speakers
|
Toetsblokkering |
Vergrendelbare bedieningsknoppen
|
Auto-on |
Automatisch aan bij stroom/signaal
|
Dimbaar backlight |
Instelbare helderheid
|
Energie | |
---|---|
Ingangsspanning |
DC 9-28V
|
Netadapter |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Energieverbruik |
5.4 Watt
|
Omgeving | |
---|---|
Bedrijfstemperatuur |
-20°C tot +60°C
|
Opslag temperatuur |
-20°C tot +70°C
|
Luchtvochtigheid |
20% - 90% niet-condenserend
|
Montage | |
---|---|
Wandmontage |
VESA (75 mm)
|
Inbouw |
2 Montagestrips meegeleverd
|
Voetsteun |
Verstelbaar & afneembaar
|
Certificeringen & keurmerken | |
---|---|
Certificeringen |
CE, FCC, RoHS, REACH, UKCA
|
Inhoud verpakking | |
---|---|
Standaard inbegrepen |

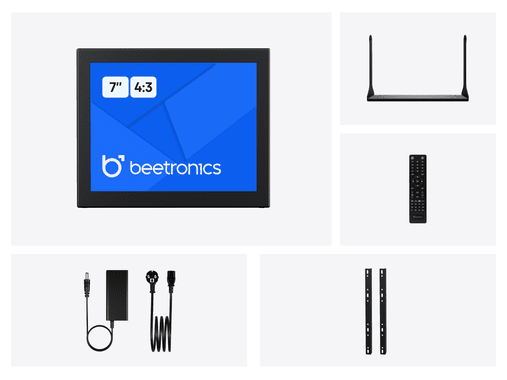

Monitor, Netadapter, Afstandsbediening, Montagestrips, Voetsteun, Handleiding
|
Handleiding | Download PDF |
Technische tekening | Download PDF |
3D tekening | Download CAD/STP |
Datasheet | Download PDF |
