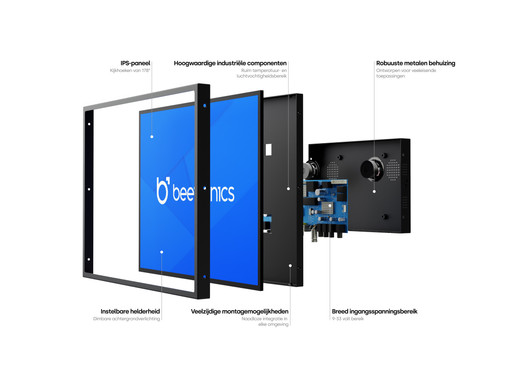

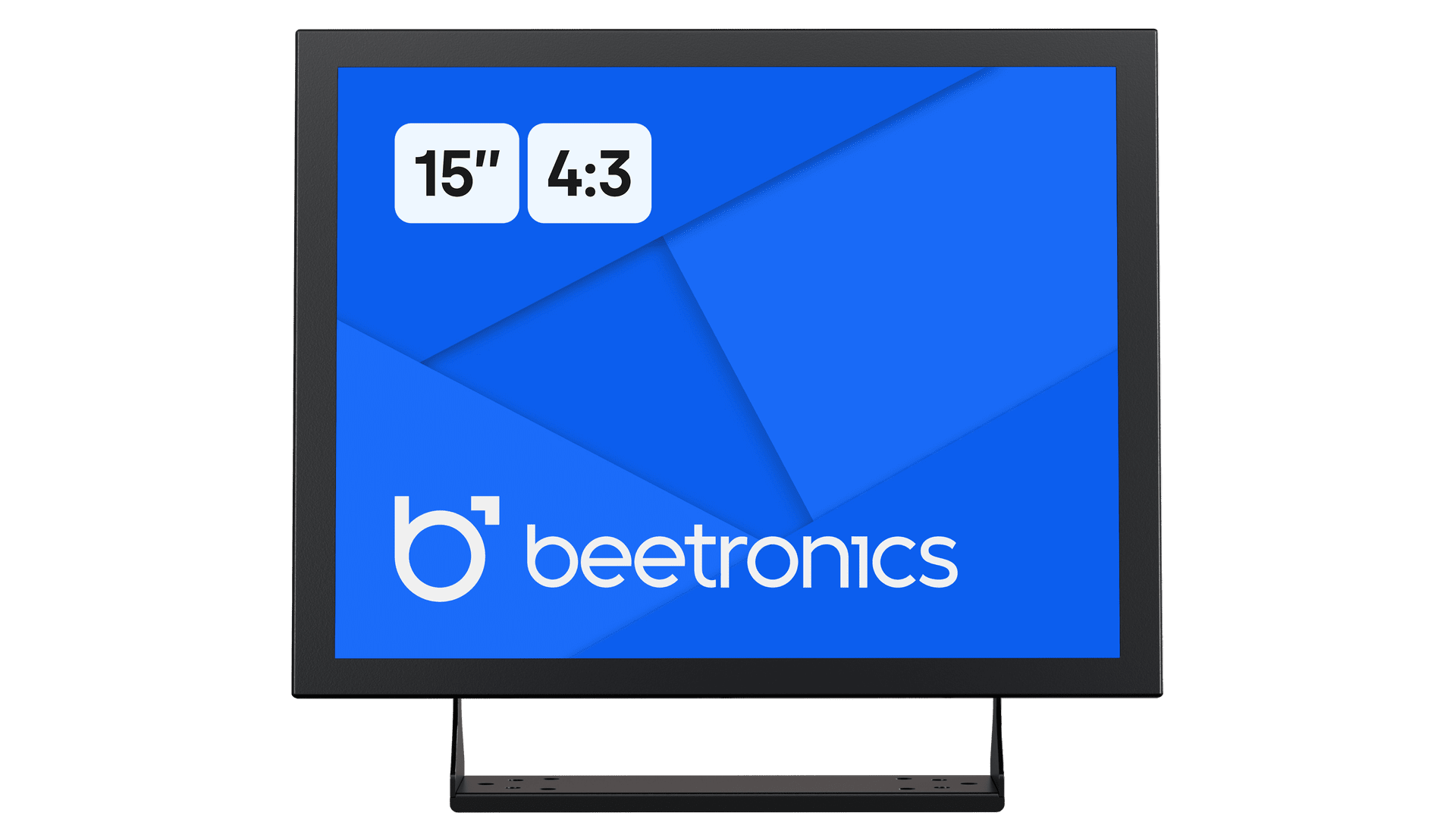

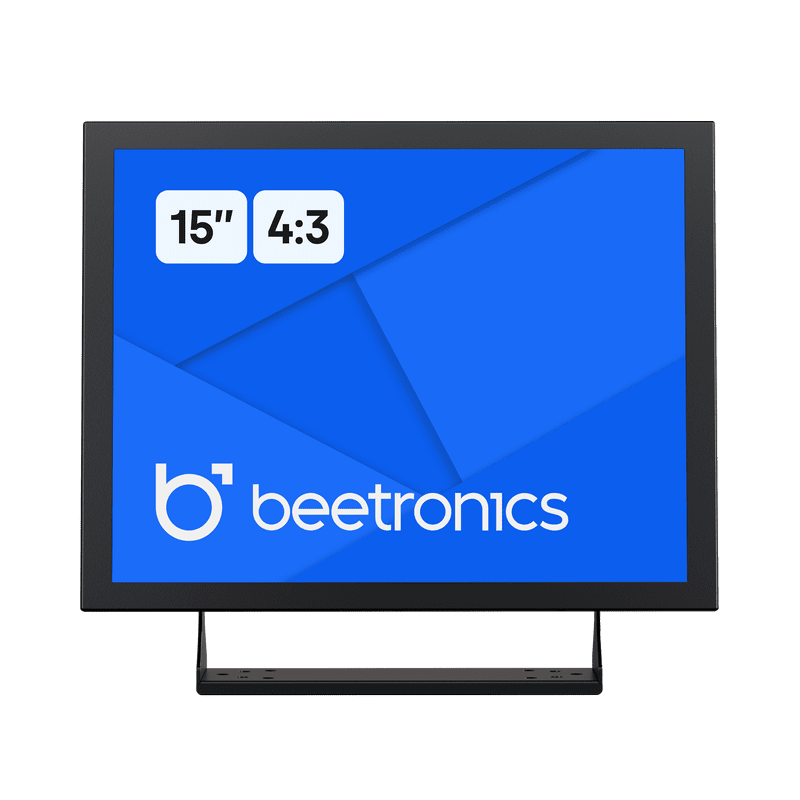

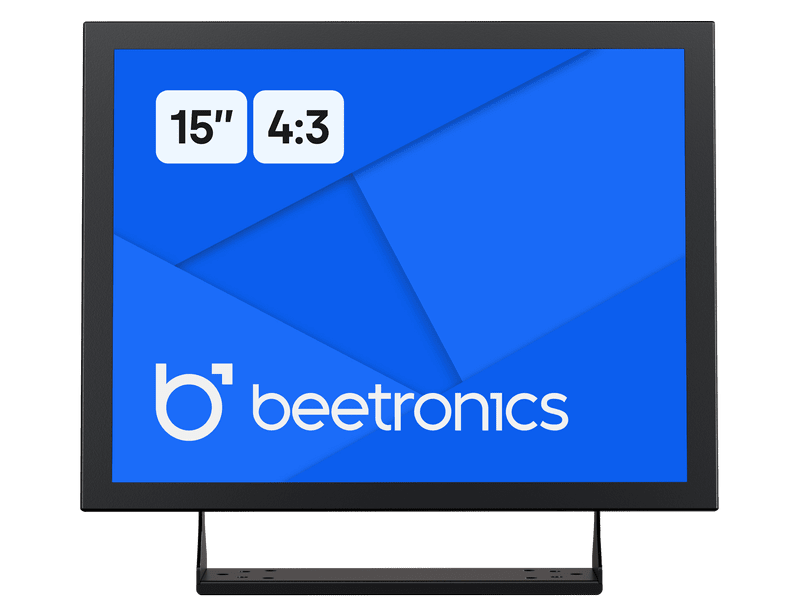

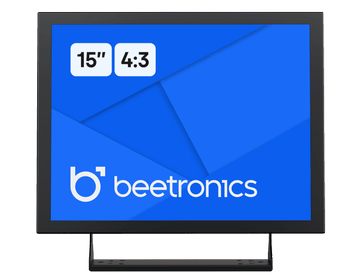

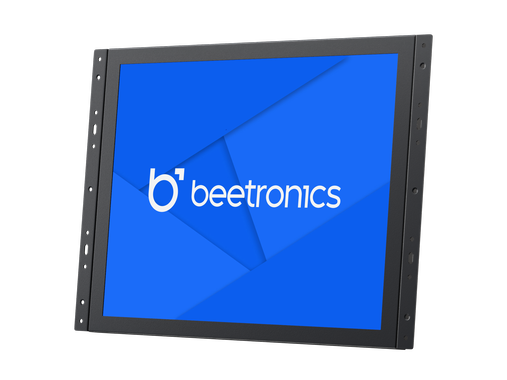

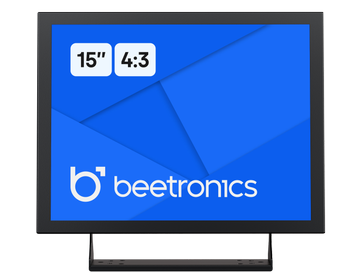

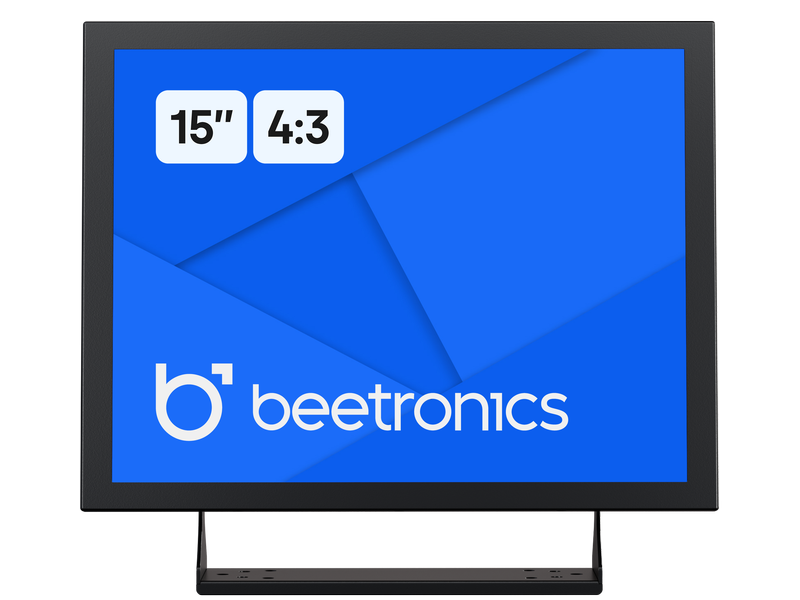

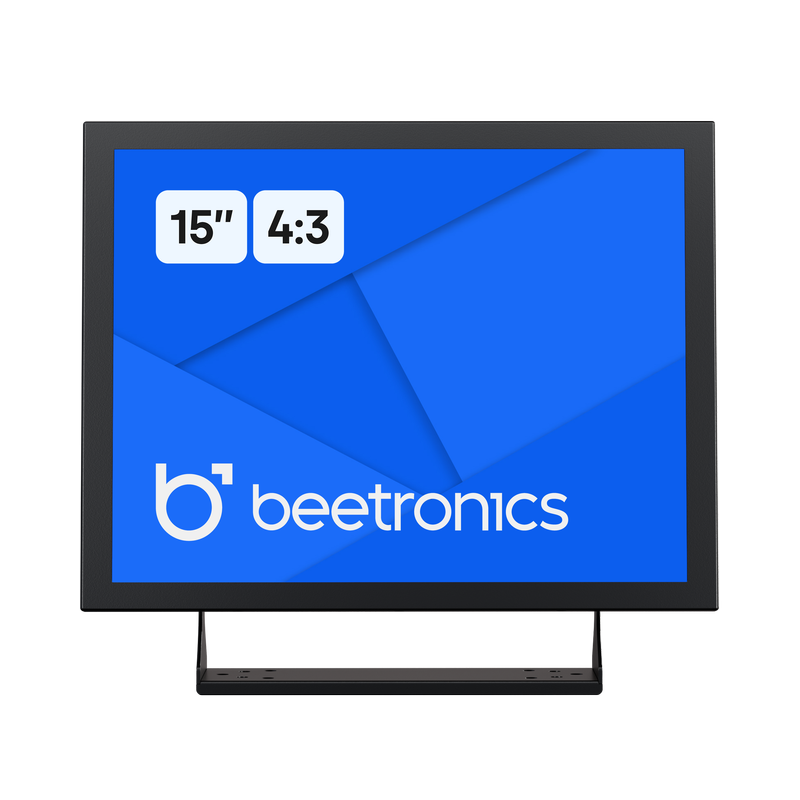

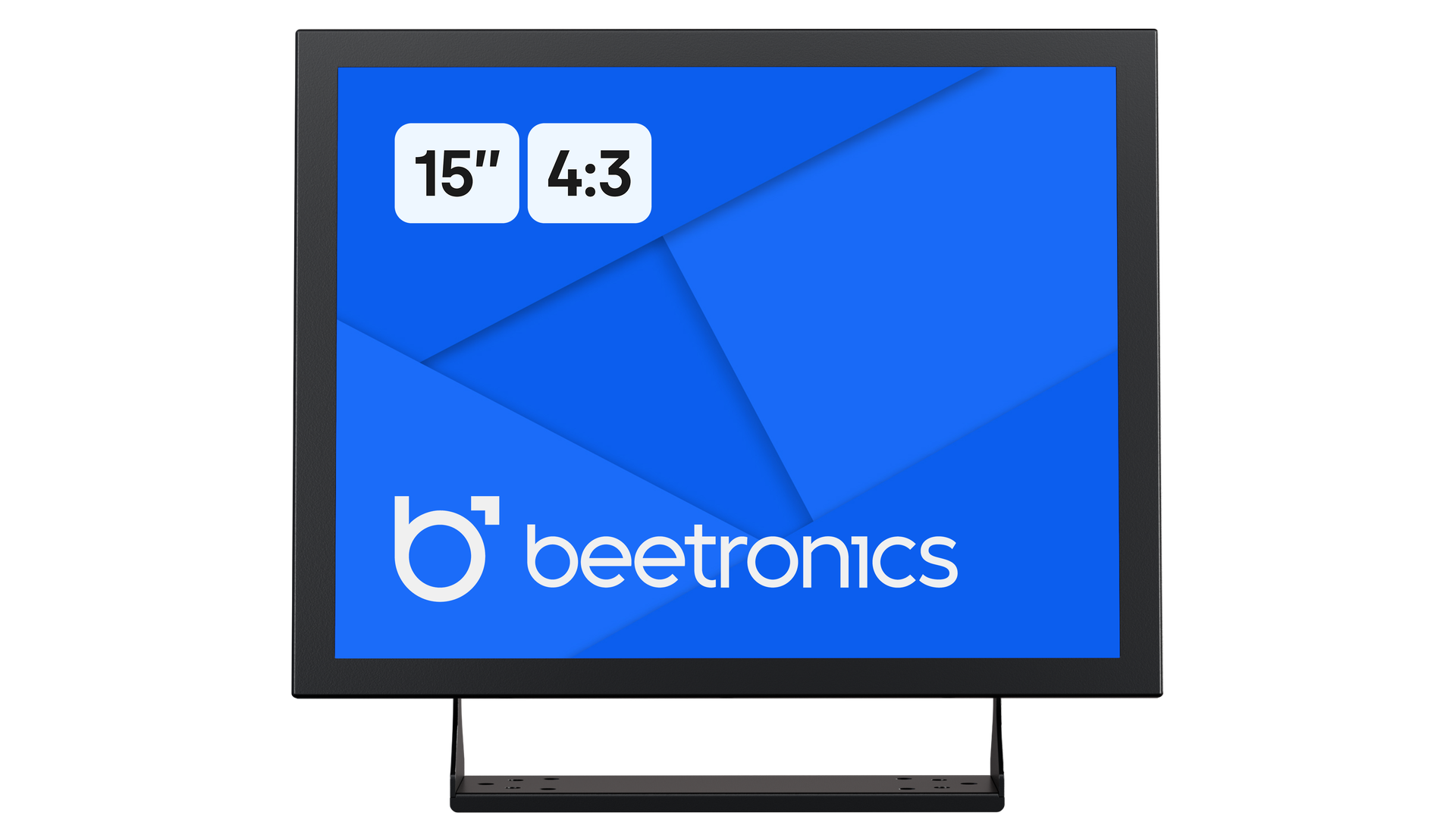

This 15 inch monitor is equipped with an LED-IPS panel, which ensures a sharp and colorful image reproduction. The monitor has a 4:3 aspect ratio and is equipped with a robust metal housing. The screen has an HDMI, VGA, BNC and RCA connection and is suitable for desktop, flush-mounted and wall mounting.
The 15 inch monitor is equipped with an IPS panel with 4:3 aspect ratio. The monitor has an excellent viewing angle of 178 degrees and a true-to-life color reproduction. The matte panel ensures that you do not suffer from annoying reflections on the screen. Contrast and color are easy to set as desired.

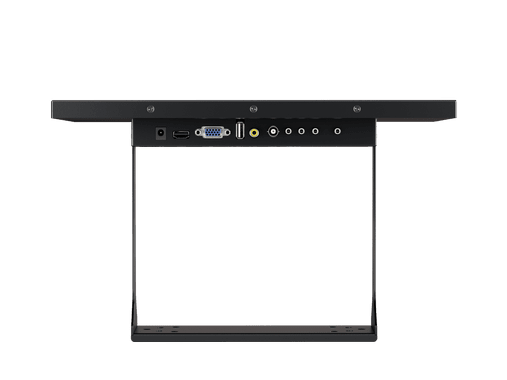

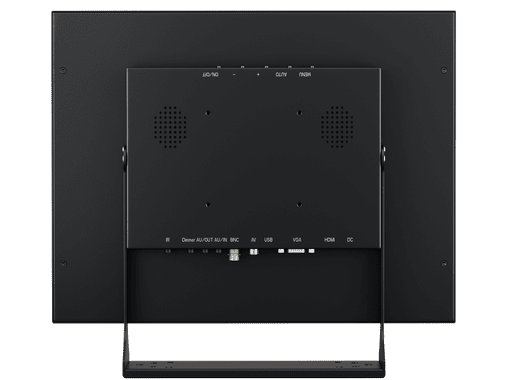

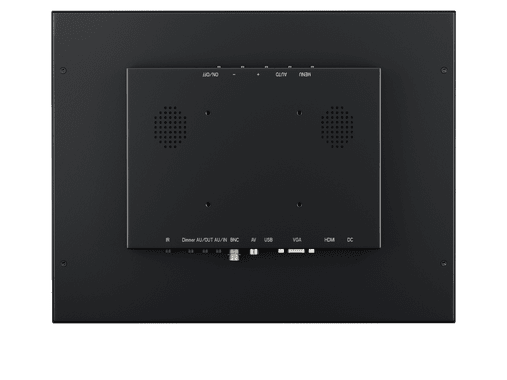

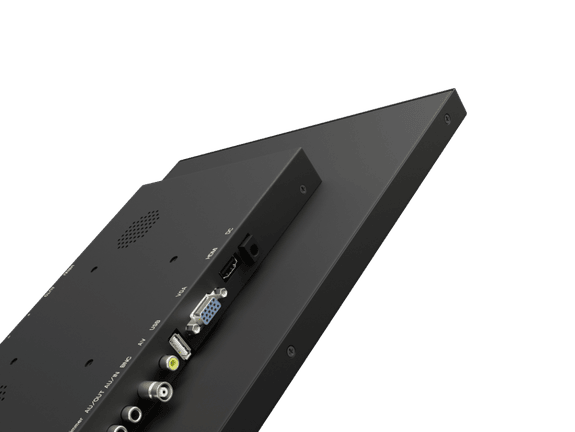

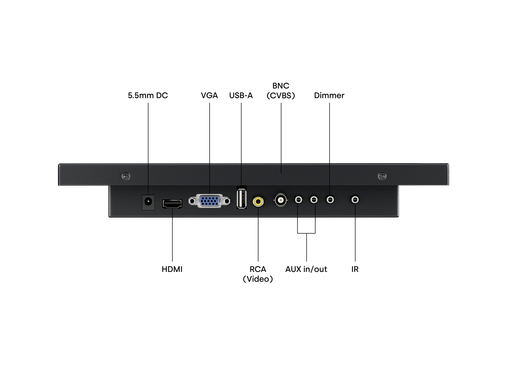

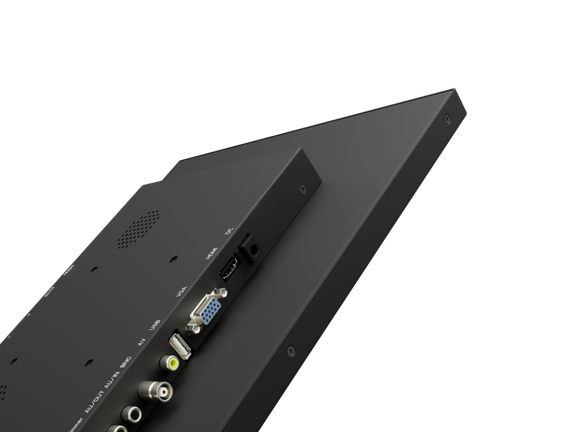

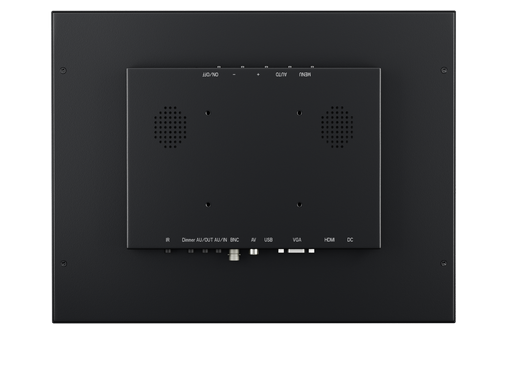

The 15 inch monitor is equipped with an HDMI, VGA, BNC and RCA-Tulip connection. The connections are located on the back of the monitor and are directed downwards. The monitor can be set to turn on automatically when there is a power or a video signal.
The 15VG7M supports an input voltage of 10-28 volts and features a fully dimmable panel. The monitor is produced with high-quality components that guarantee reliable operation in any environment. The 15 inch monitor is ideal for professional applications and is suitable for continuous use.

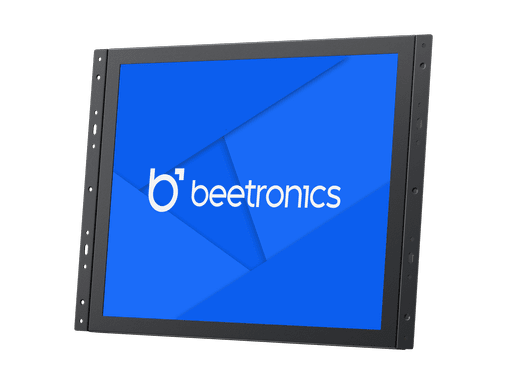

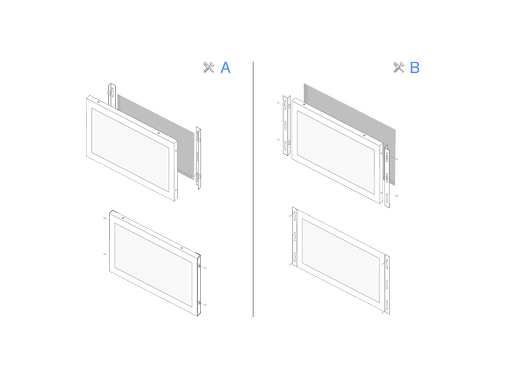

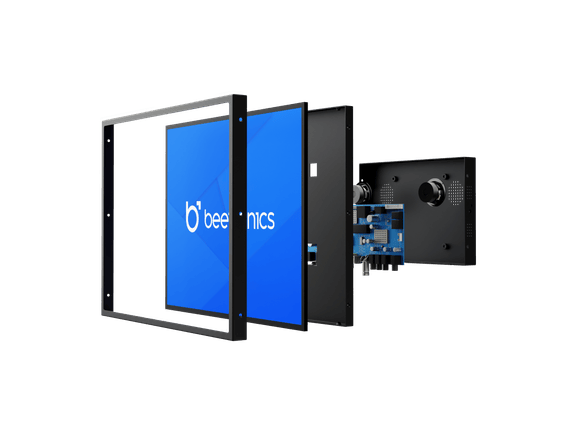

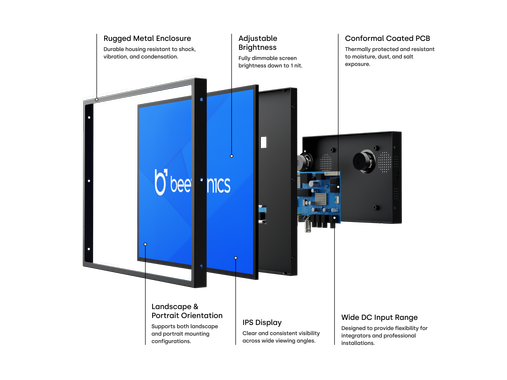

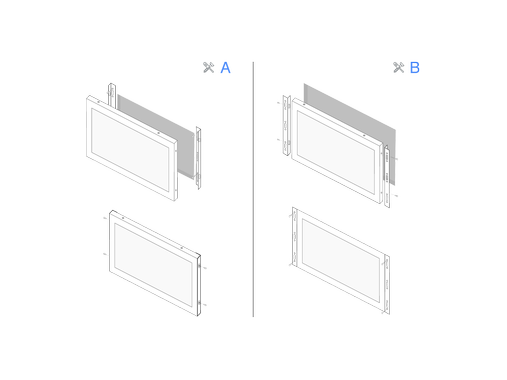

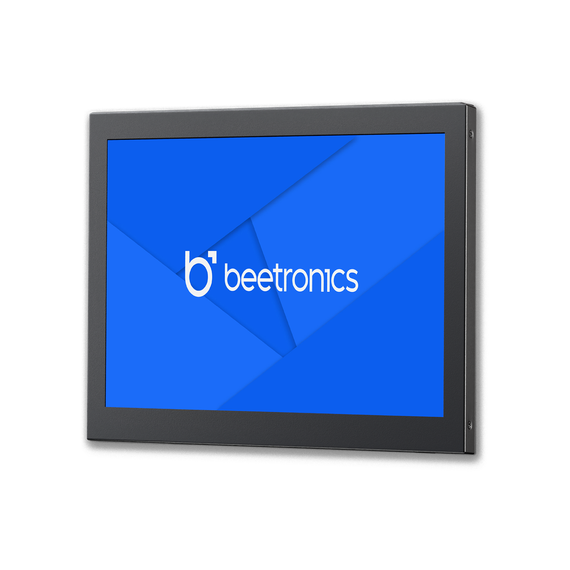

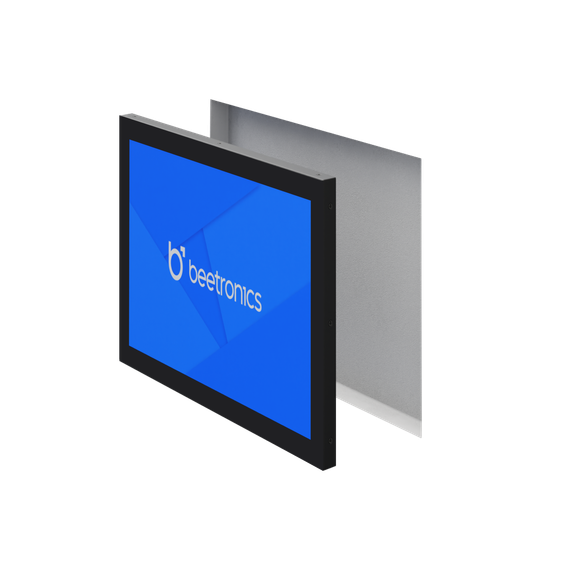

The metal 15 inch monitor can be integrated into any application thanks to various mounting options. The included mounting strips and the easy-to-disassemble housing offer a variety of built-in options that allow the monitor to be seamlessly integrated into any environment.

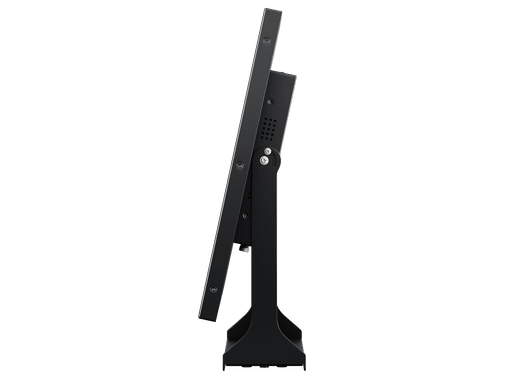

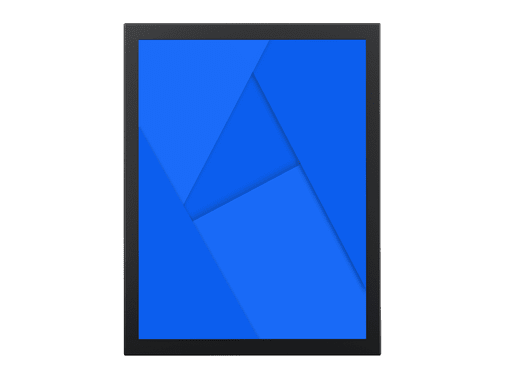

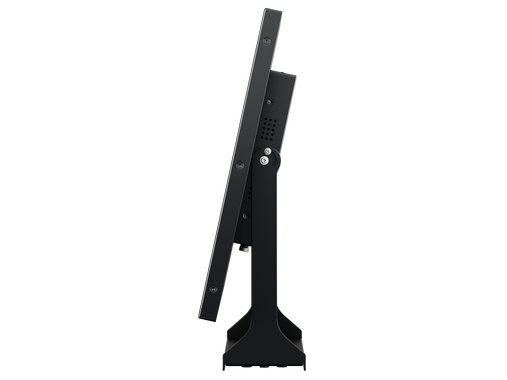

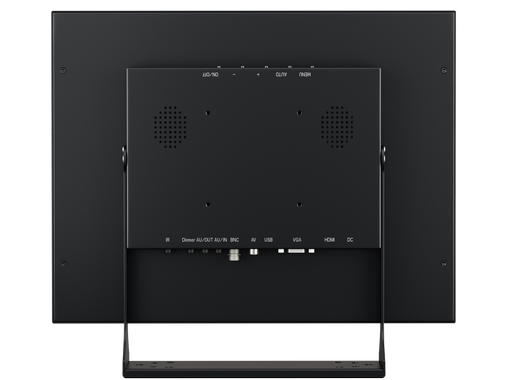

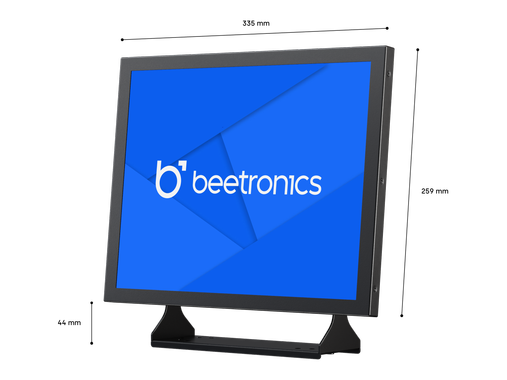

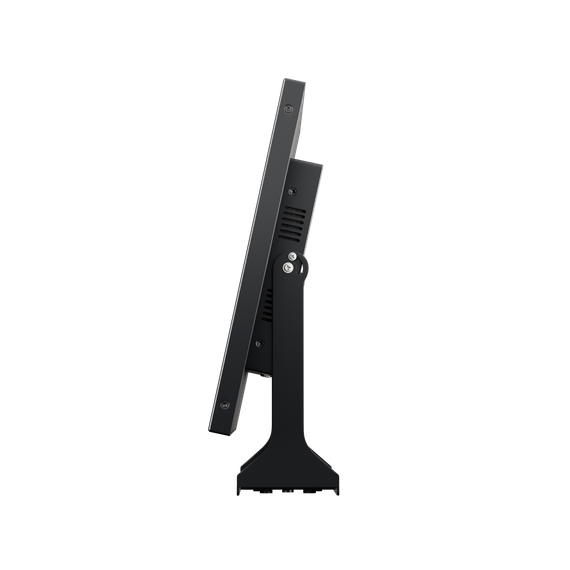

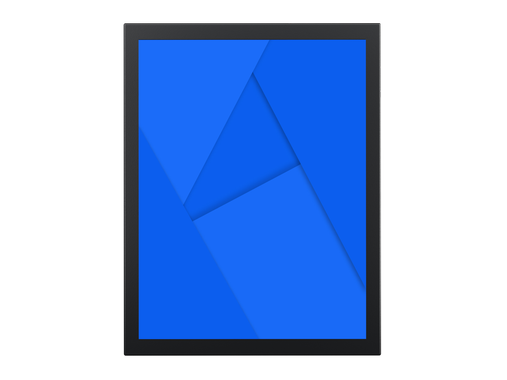

De Beetronics 15VG7M is voorzien van een kantelbare voetsteun. De voetsteun is indien gewenst eenvoudig te verwijderen zodat gebruik gemaakt kan worden van de 75mm VESA mount. Hiermee kan de monitor bevestigd worden aan een universele muurbeugel, zowel in landscape als portrait modus.
Algemeen | |
---|---|
Fabrikant |
Beetronics
|
Artikelnummer |
15VG7M
|
Vorig model |
15VGM
|
Productnaam |
15 inch monitor metaal (4:3)
|
Garantie |
2 jaar
|
Datasheet | |
Handleiding |
Paneel | |
---|---|
Type |
Mat, LED-IPS
|
Schermdiagonaal |
15 inch (383 mm)
|
Beeldverhouding |
4:3
|
Native resolutie |
1024 x 768
|
Ondersteunde resoluties |
1920 x 1080 (max), 640 x 480 (min)
|
Pixels per inch |
85 PPI
|
Kijkhoek |
178° horizontaal, 178° verticaal
|
Kleurcoderingssysteem |
PAL/NTSC/SECAM
|
Helderheid |
350 cd/m2
|
Contrast |
1500:1
|
Aansluitingen | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
3.5mm jack uitgang |
1x
|
USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
Fysieke eigenschappen | |
---|---|
Kleur |
Zwart
|
Gewicht |
2200 gram (2800 gram met voetsteun)
|

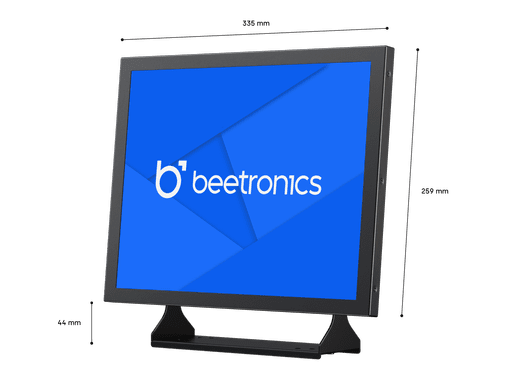

Breedte |
335 mm
|
Hoogte |
259 mm (+0 tot 37 mm met voetsteun)
|
Diepte |
37 mm
|
Afmetingen paneel |
306 x 230 mm
|
Technische tekening | |
3D tekening |
Eigenschappen en functies | |
---|---|
Audio |
Geïntegreerde speakers
|
Toetsblokkering |
Vergrendelbare bedieningsknoppen
|
Auto-on |
Automatisch aan bij stroom/signaal
|
Dimbaar backlight |
Instelbare helderheid
|
Spiegelfunctie |
Beeld is horizontaal en verticaal te spiegelen
|
Energie | |
---|---|
Ingangsspanning |
DC 10-28V
|
Netadapter |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Energieverbruik |
13.8 Watt
|
Omgeving | |
---|---|
Bedrijfstemperatuur |
-20°C tot +60°C
|
Opslag temperatuur |
-20°C tot +70°C
|
Luchtvochtigheid |
20% - 90% niet-condenserend
|
Montage | |
---|---|
Wandmontage |
VESA (75 mm)
|
Inbouw |
2 Montagestrips meegeleverd
|
Voetsteun |
Verstelbaar & afneembaar
|
Certificeringen & keurmerken | |
---|---|
Certificeringen |
CE, FCC, RoHS, REACH, UKCA
|
Inhoud verpakking | |
---|---|

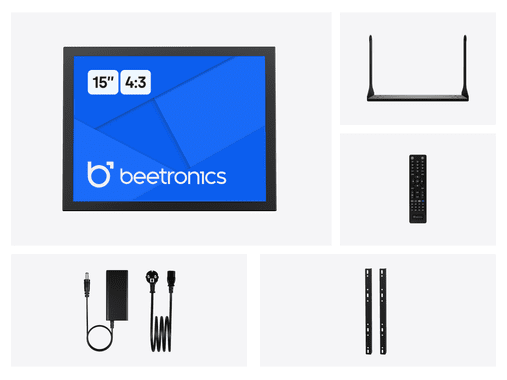

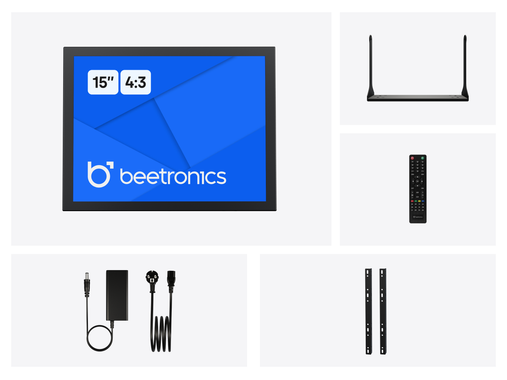

Standaard inbegrepen |
Monitor, Netadapter, Afstandsbediening, Montagestrips, Voetsteun, Handleiding
|
Handleiding | Download PDF |
Technische tekening | Download PDF |
3D tekening | Download CAD/STP |
Datasheet | Download PDF |
Bestanden |
---|
Product | Artikelnummer | Voorraad | Aantal | Prijs |
---|---|---|---|---|
![]()
15 inch monitor metaal (4:3)
|
15VG7M |
|
|
€ 275,00 |
![]() |
VWB1 |
|
|
€ 25,00 |
![]() |
VDK4 |
|
|
€ 29,00 |
![]() |
KHD2 |
|
|
€ 15,00 |
![]() |
VGA1 |
|
|
€ 15,00 |
![]() |
RMK2 |
|
|
€ 49,00 |
![]() |
DMK7 |
|
|
€ 25,00 |
|
