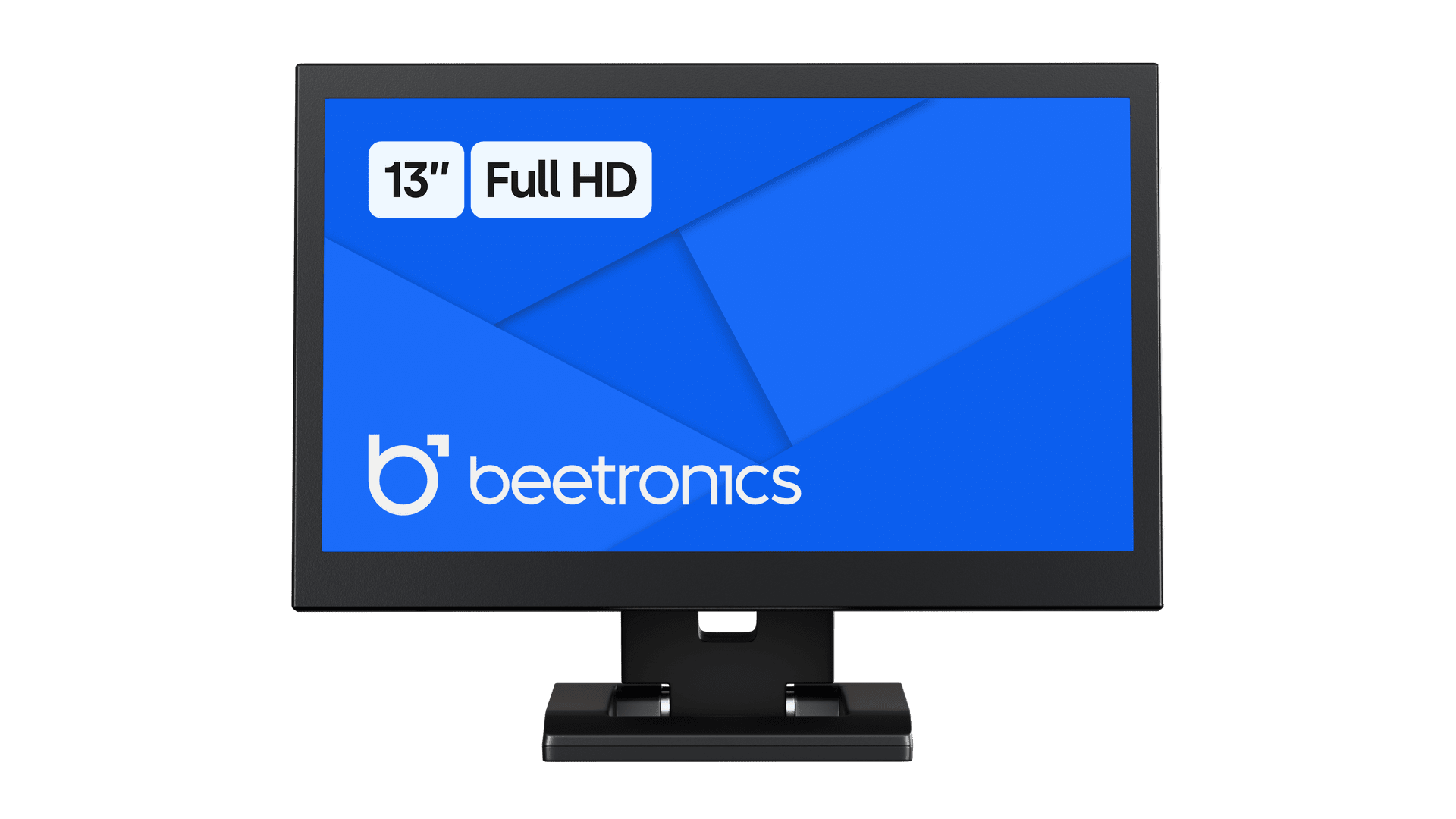

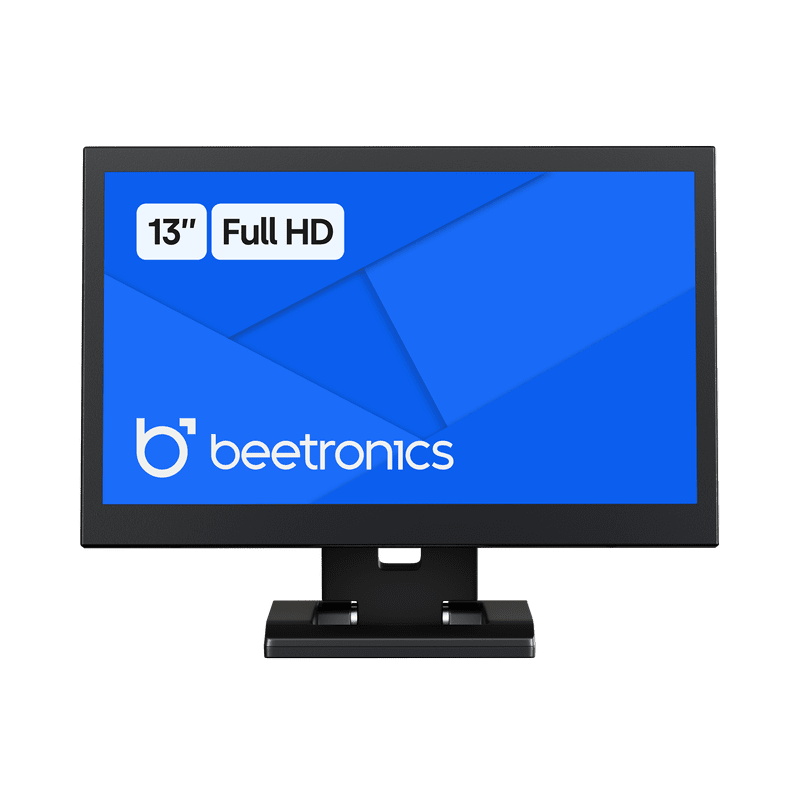

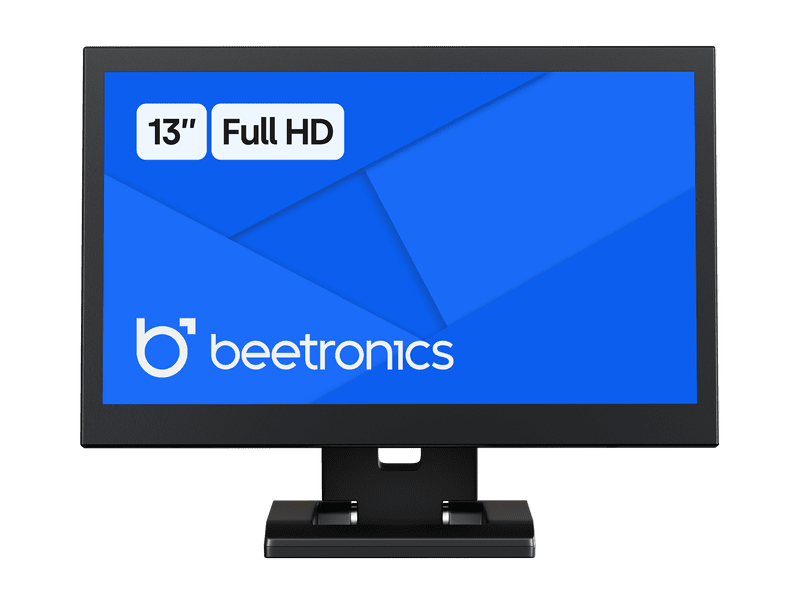

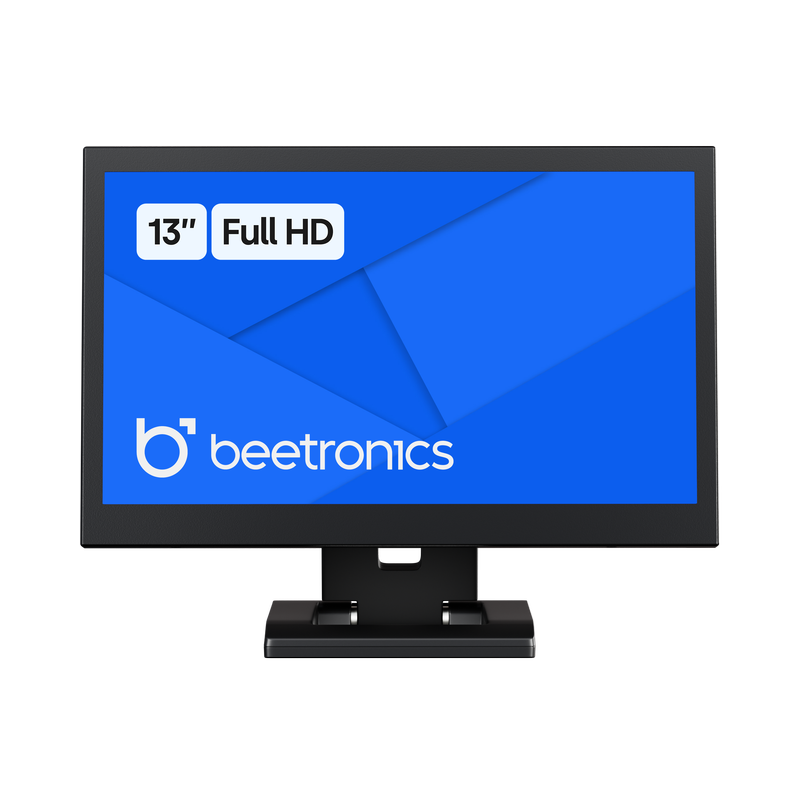

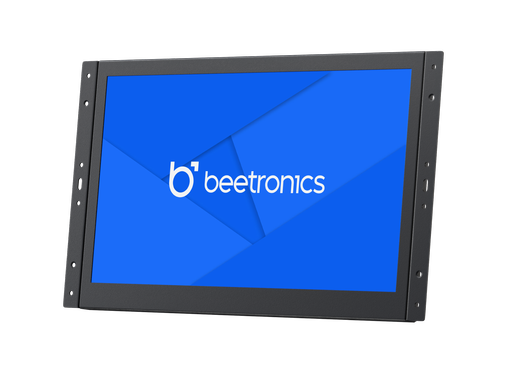

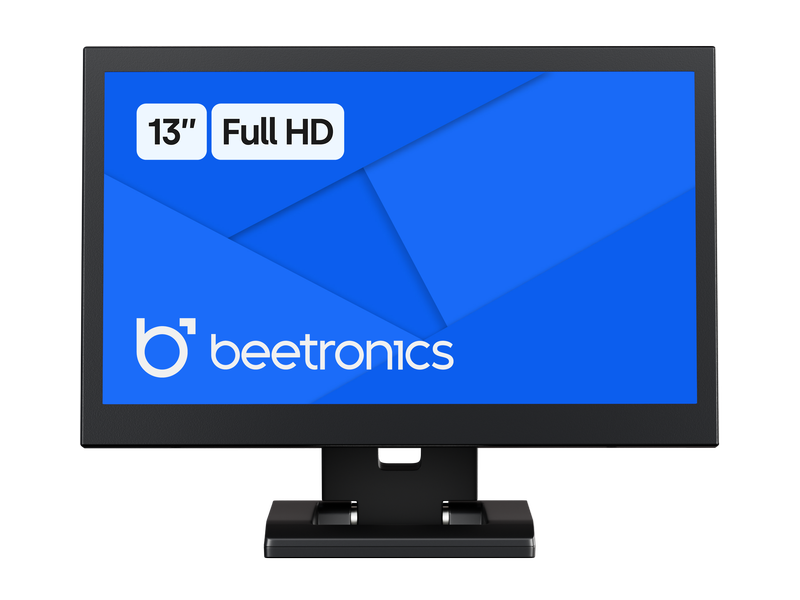

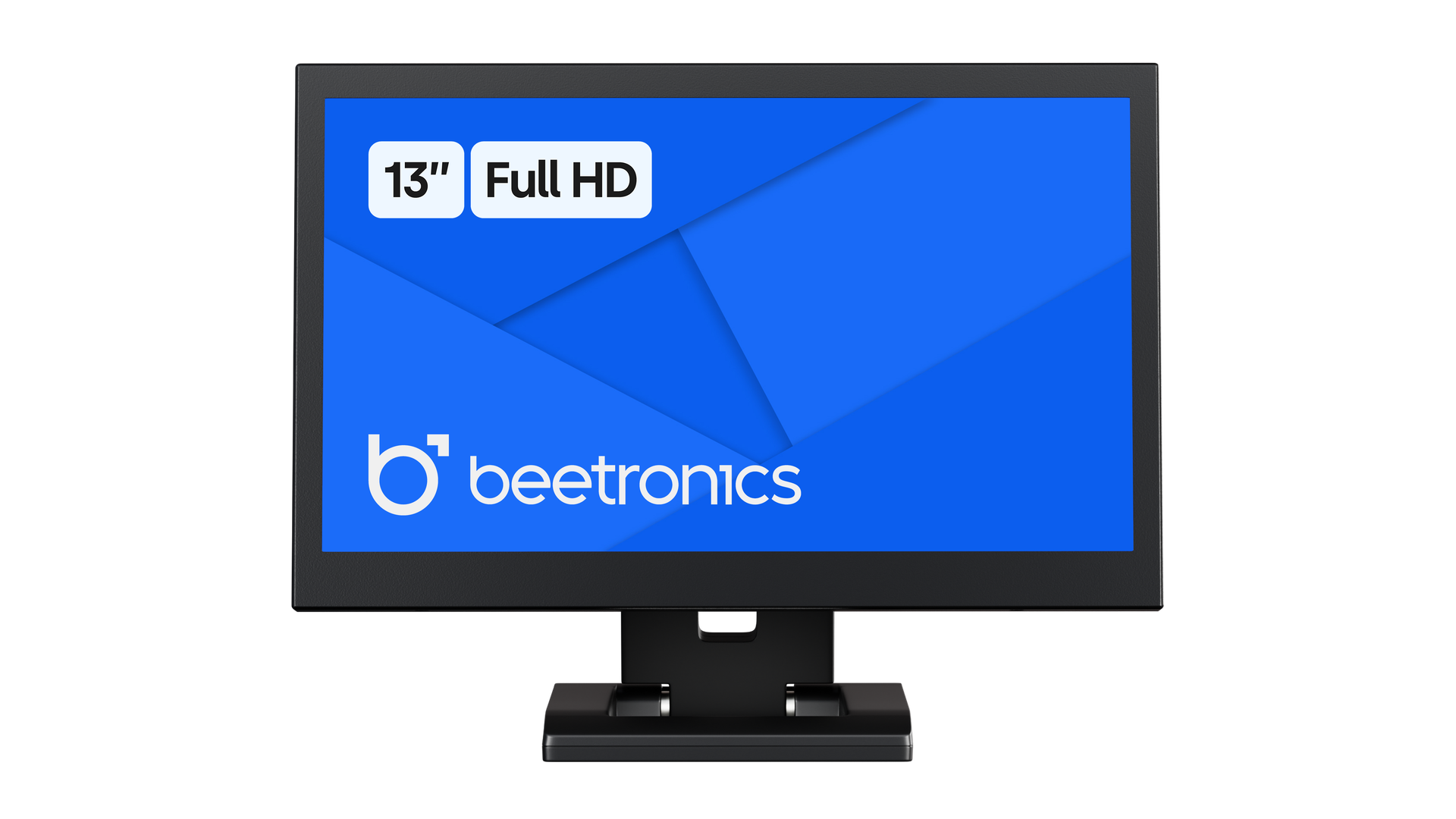

This 13-inch monitor has a sturdy metal housing and is suitable for desktop, built-in and wall mounting. The monitor is equipped with a Full HD IPS panel, which provides an excellent viewing angle and a razor-sharp image display. The 13HD7M can be connected via the HDMI, VGA, BNC or RCA-Tulip connection.
The 13-inch monitor is equipped with a Full HD IPS panel. This a razor-sharp image display ensures, a very wide viewing angle of 178 degrees and a true-to-life color reproduction. The matte screen ensures that reflections are kept to a minimum. Contrast, color and brightness can be easily adjusted as desired. The monitor supports all common resolutions, up to and including 1080P.

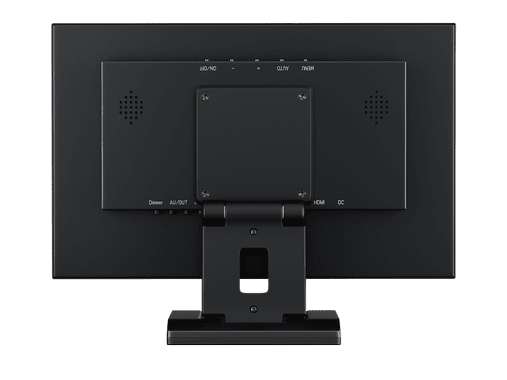

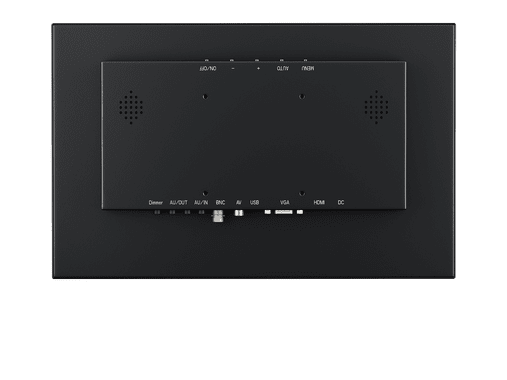

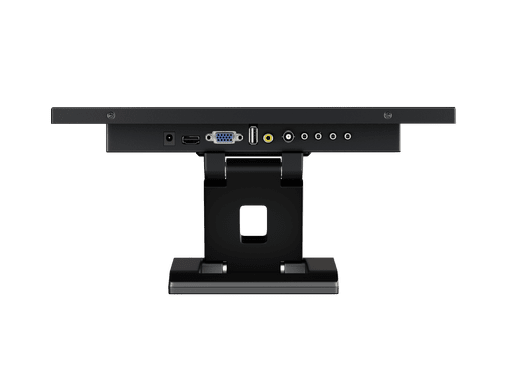

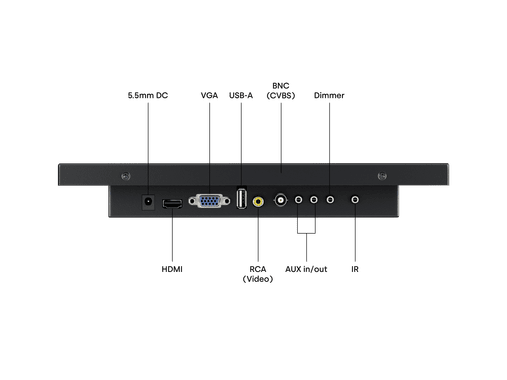

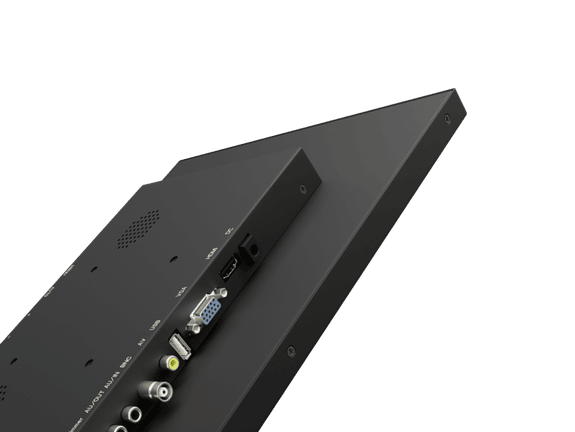

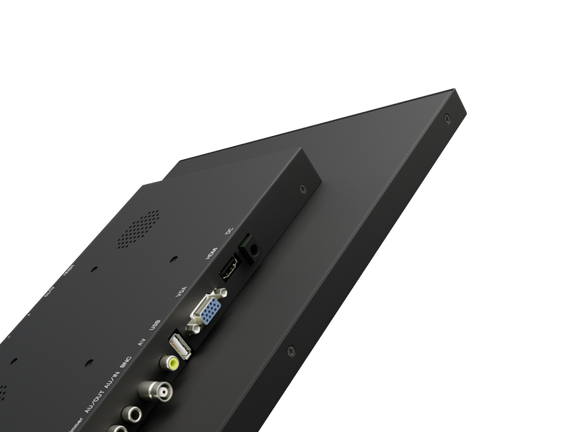

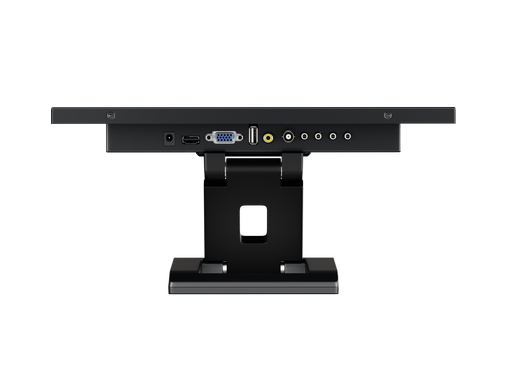

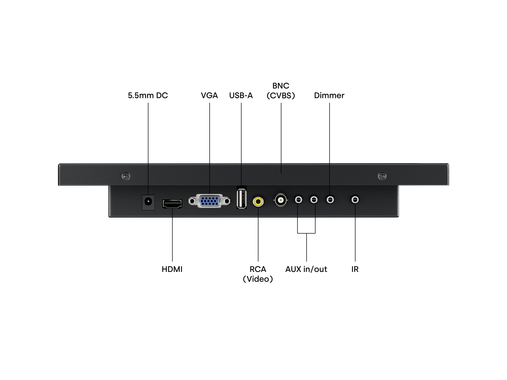

The 13 inch monitor is equipped with an HDMI, VGA, BNC and RCA-Tulp connection. The connectors are located on the back of the monitor and face downwards. The monitor can be set to turn on automatically when there is power or a video signal.

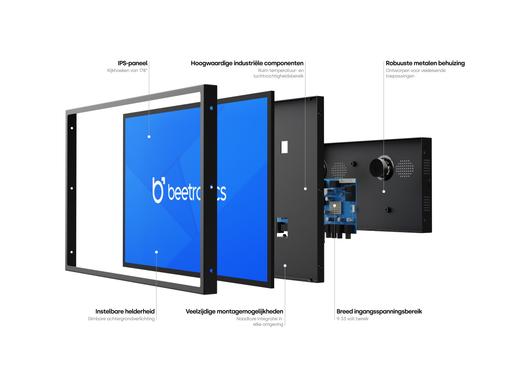

The 13HD7M supports an input voltage of 9-28 volts and features a fully dimmable panel. The monitor is produced with high-quality components that guarantee reliable operation in any environment. The 13 inch monitor is ideal for professional applications and is suitable for continuous use.

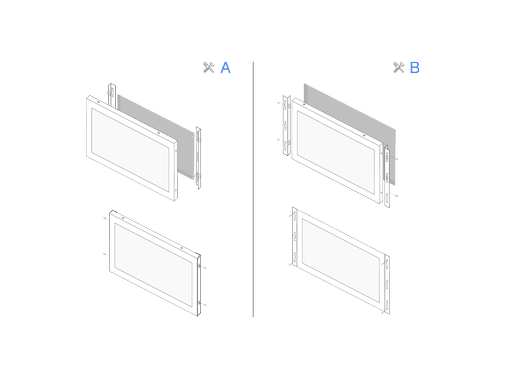

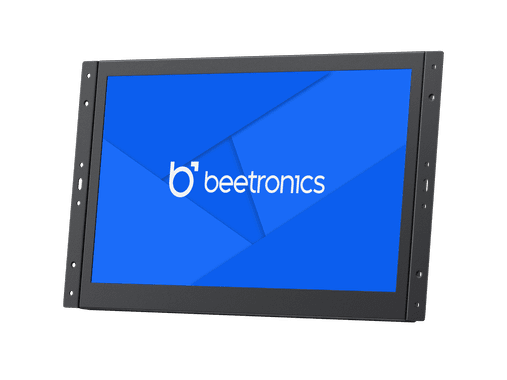

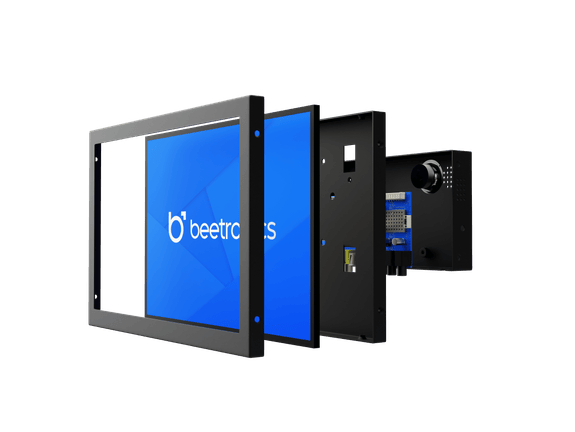

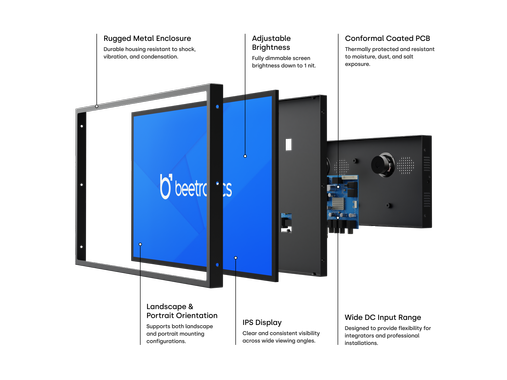

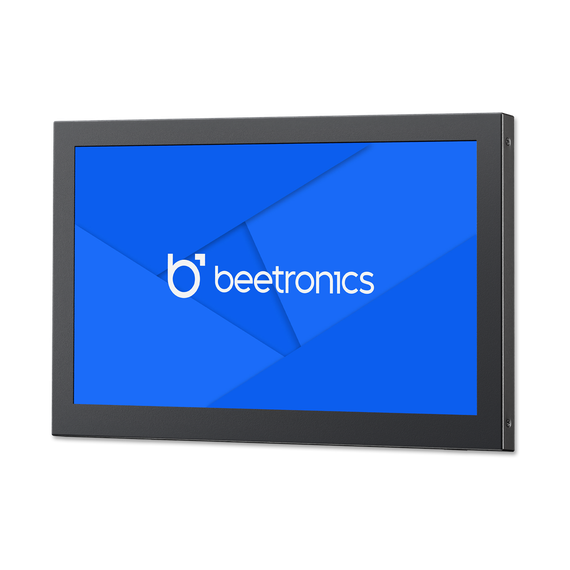

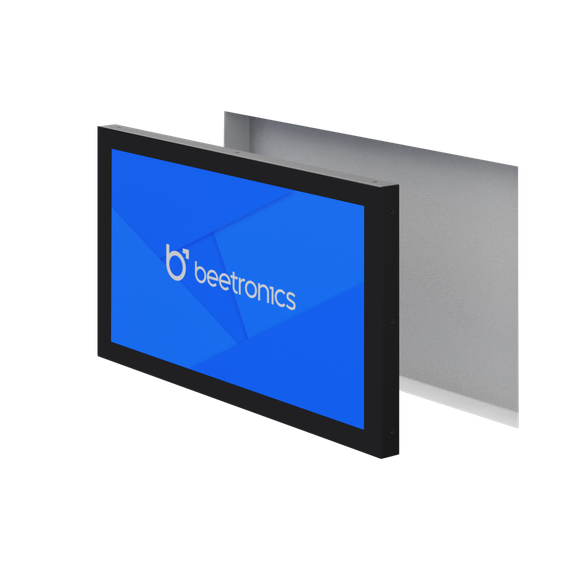

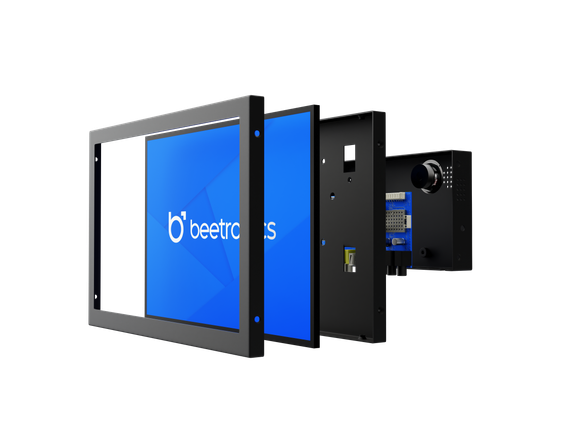

The metal 13-inch monitor can be integrated into any application thanks to various mounting options. The included mounting strips and easy-to-disassemble housing offer various mounting options, allowing the monitor to be seamlessly integrated into any environment.

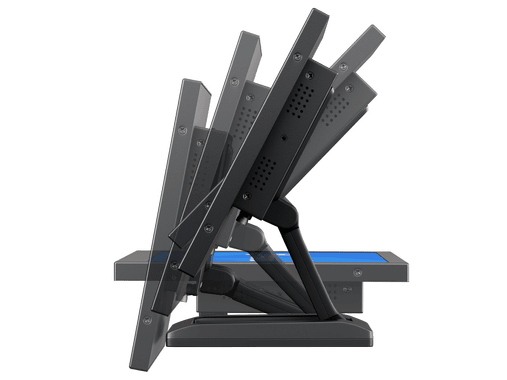

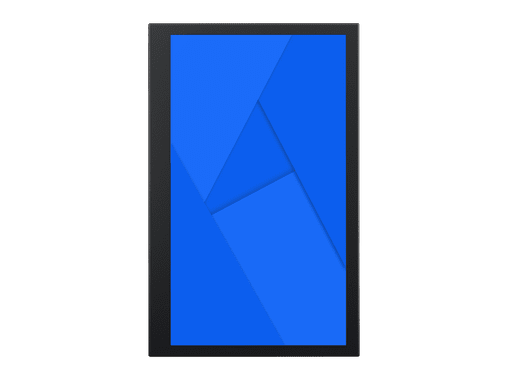

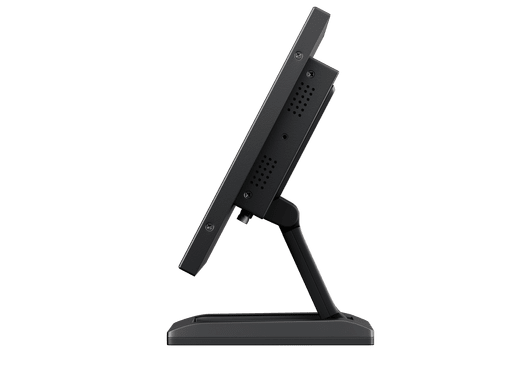

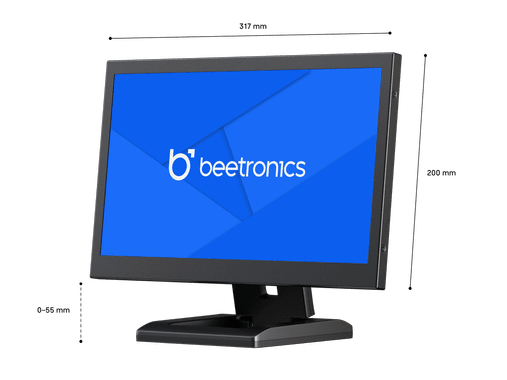

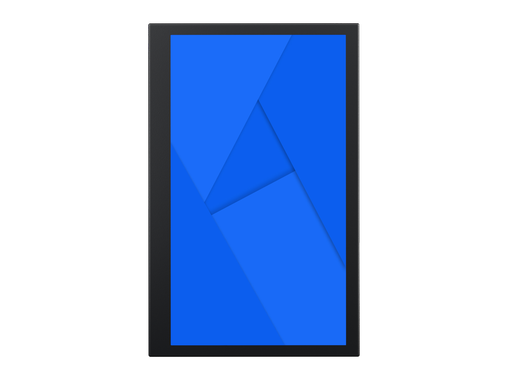

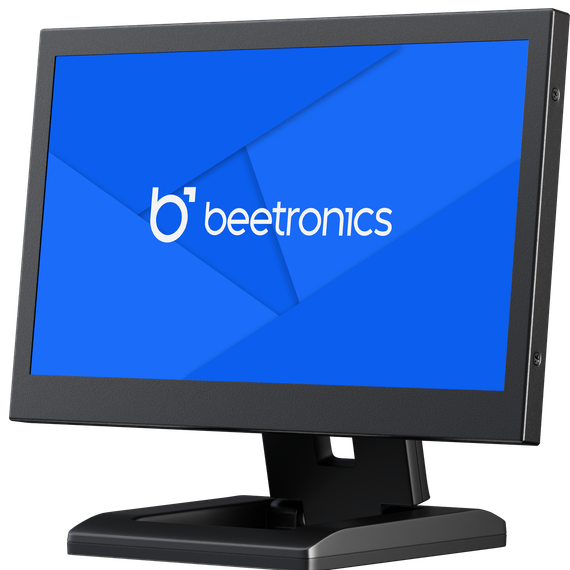

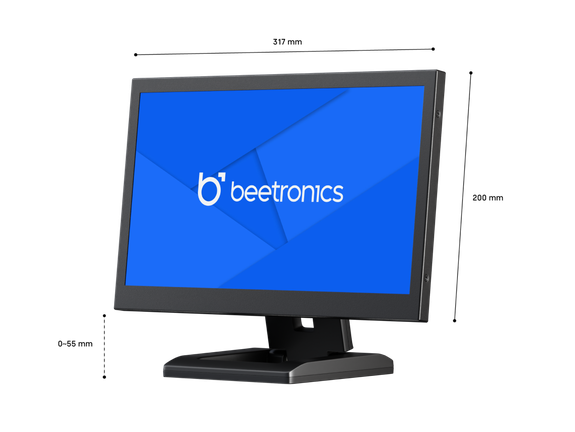

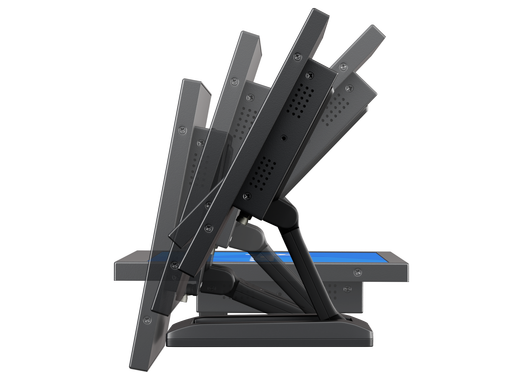

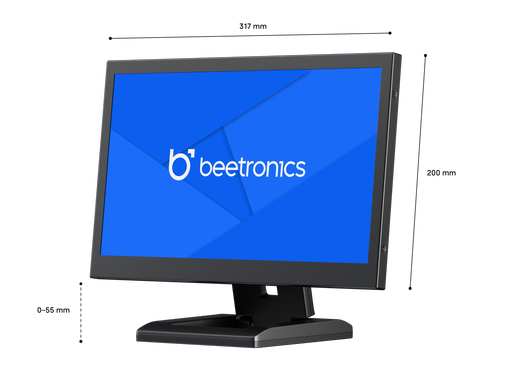

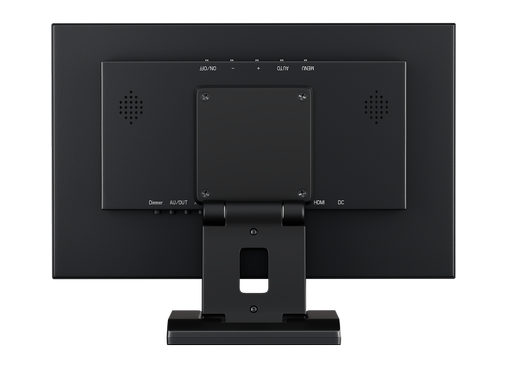

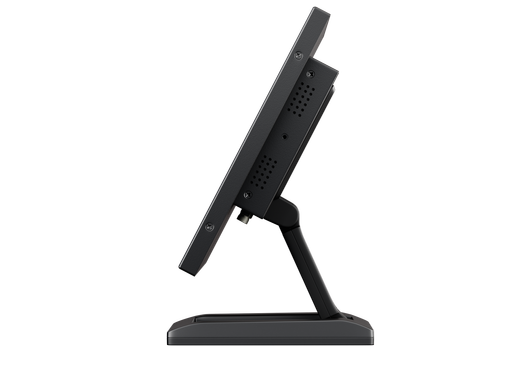

The Beetronics 13HD7M is equipped with a tiltable footrest. The footrest can be easily removed if desired so that the 75mm VESA mount can be used. This allows the monitor to be attached to a universal wall bracket, both in landscape and portrait mode.
Algemeen | |
---|---|
Fabrikant |
Beetronics
|
Artikelnummer |
13HD7M
|
Vorig model |
13HDM
|
Productnaam |
13 inch monitor metaal
|
Garantie |
2 jaar
|
Datasheet | |
Handleiding |
Paneel | |
---|---|
Type |
Mat, LED-IPS
|
Schermdiagonaal |
13.3 inch (338 mm)
|
Beeldverhouding |
16:9 (4:3 instelbaar)
|
Native resolutie |
1920 x 1080
|
Ondersteunde resoluties |
1920 x 1080 (max), 640 x 480 (min)
|
Pixels per inch |
166 PPI
|
Kijkhoek |
178° horizontaal, 178° verticaal
|
Kleurcoderingssysteem |
PAL/NTSC/SECAM
|
Helderheid |
300 cd/m2
|
Contrast |
1000:1
|
Aansluitingen | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
3.5mm jack ingang |
1x
|
3.5mm jack uitgang |
1x
|
USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
Fysieke eigenschappen | |
---|---|
Kleur |
Zwart
|
Gewicht |
1600 gram (2000 gram met voetsteun)
|

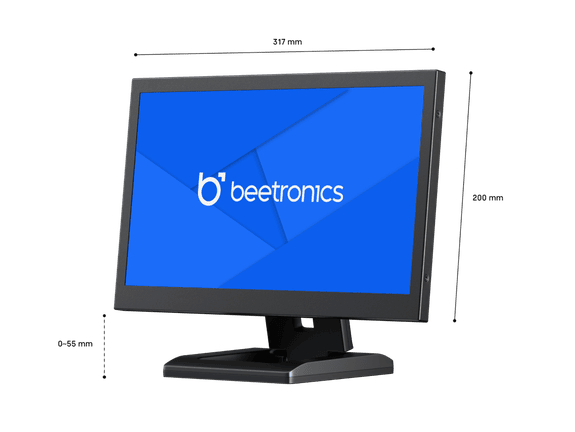

Breedte |
317 mm
|
Hoogte |
201 mm (+0 tot 39 mm met voetsteun)
|
Diepte |
33 mm
|
Afmetingen paneel |
295 x 166 mm
|
Technische tekening | |
3D tekening |
Eigenschappen en functies | |
---|---|
Audio |
Geïntegreerde speakers
|
Toetsblokkering |
Vergrendelbare bedieningsknoppen
|
Auto-on |
Automatisch aan bij stroom/signaal
|
Dimbaar backlight |
Instelbare helderheid
|
Spiegelfunctie |
Beeld is horizontaal en verticaal te spiegelen
|
Energie | |
---|---|
Ingangsspanning |
DC 9-28V
|
Netadapter |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Energieverbruik |
7.5 Watt
|
Omgeving | |
---|---|
Bedrijfstemperatuur |
-20°C tot +60°C
|
Opslag temperatuur |
-20°C tot +70°C
|
Luchtvochtigheid |
20% - 90% niet-condenserend
|
Montage | |
---|---|
Wandmontage |
VESA (75 mm)
|
Inbouw |
2 Montagestrips meegeleverd
|
Voetsteun |
Verstelbaar & afneembaar
|
Certificeringen & keurmerken | |
---|---|
Certificeringen |
CE, FCC, RoHS, REACH, UKCA
|
Inhoud verpakking | |
---|---|

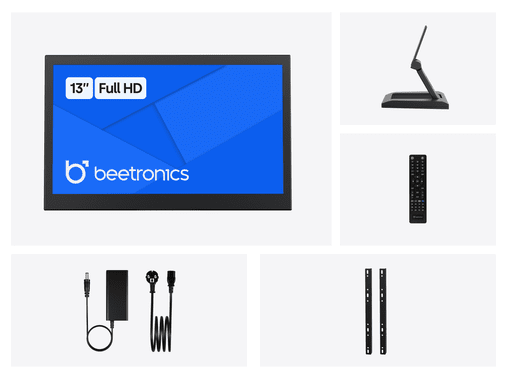

Standaard inbegrepen |
Monitor, Netadapter, Afstandsbediening, Montagestrips, Voetsteun, Handleiding
|
Handleiding | Download PDF |
Technische tekening | Download PDF |
3D tekening | Download CAD/STP |
Datasheet | Download PDF |
Bestanden |
---|
