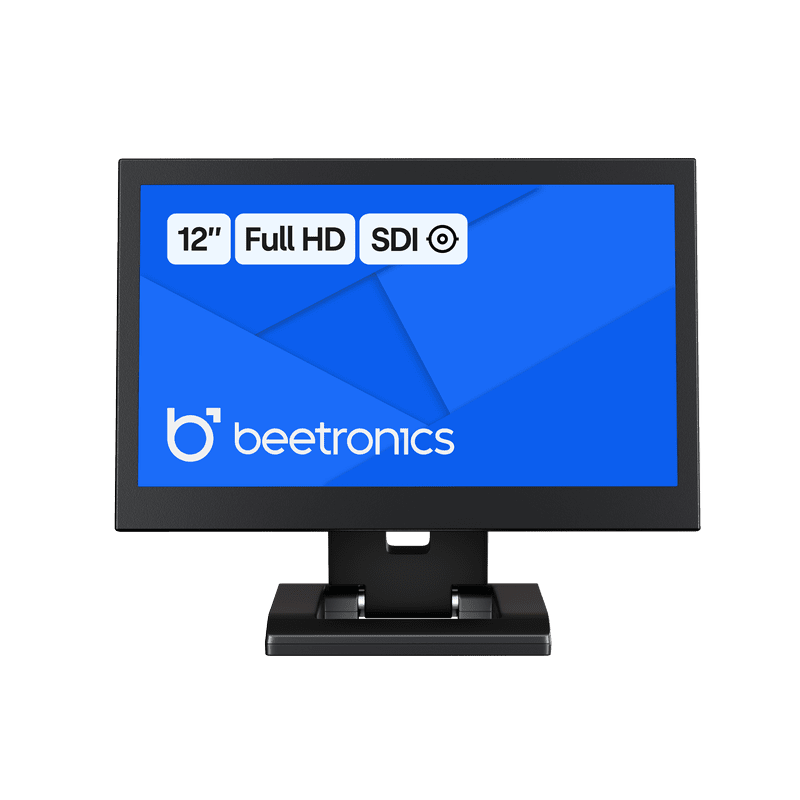

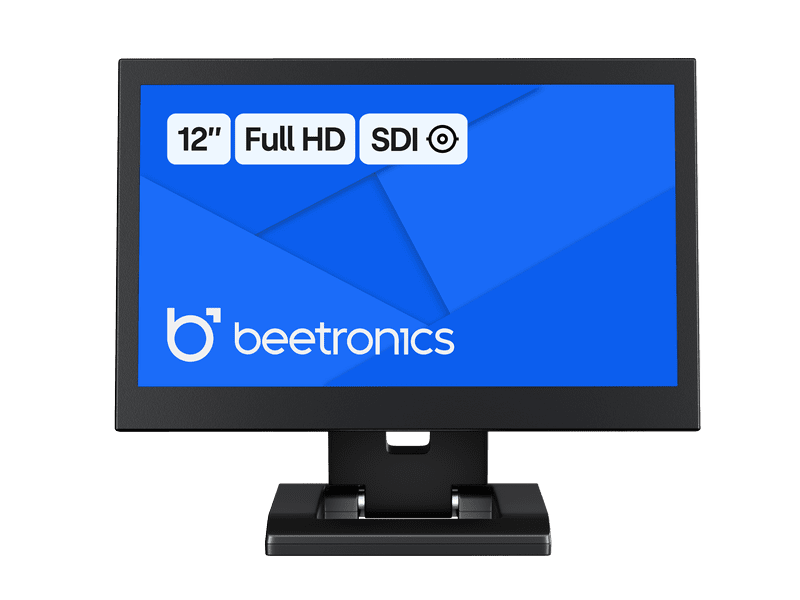

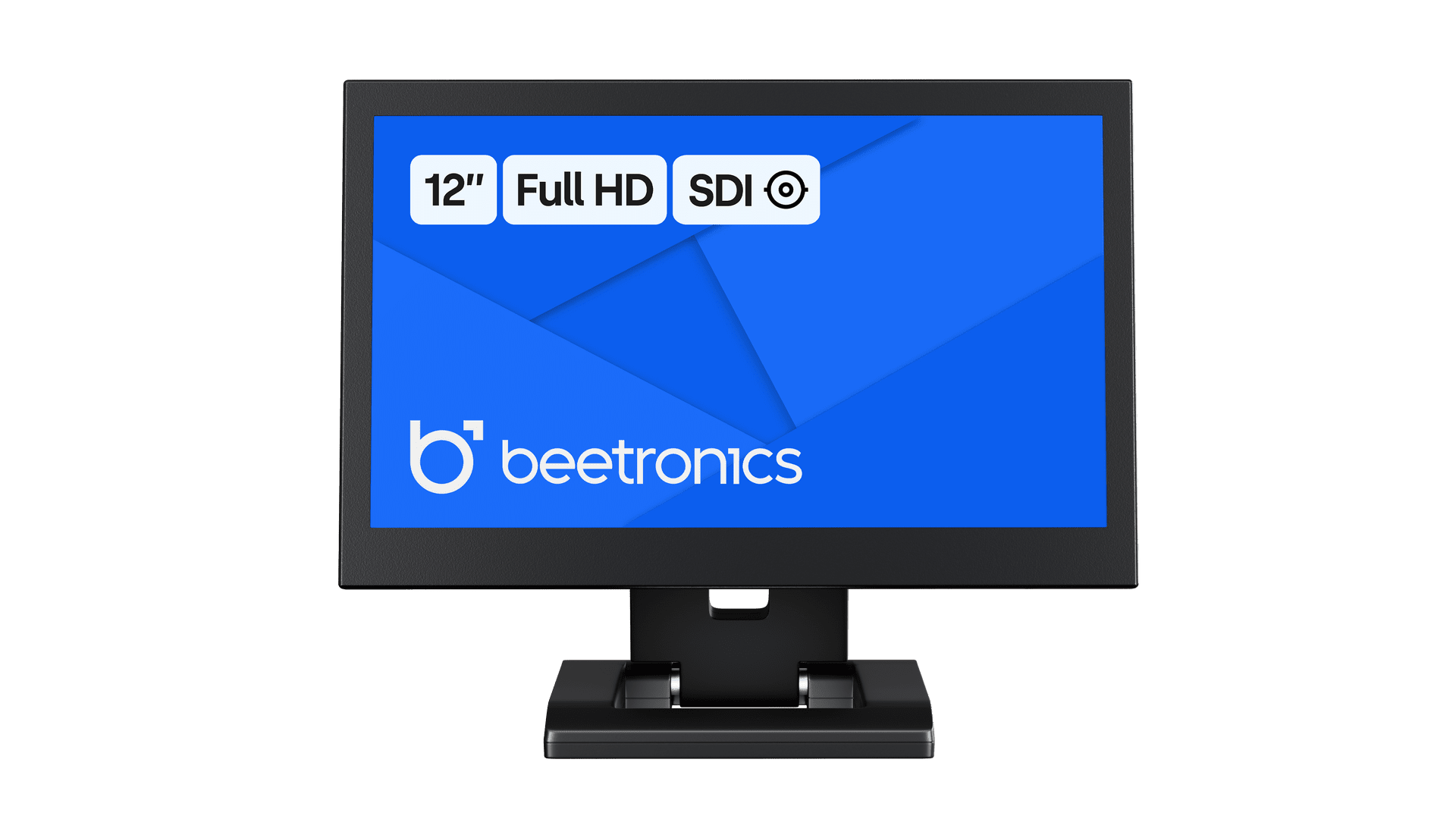

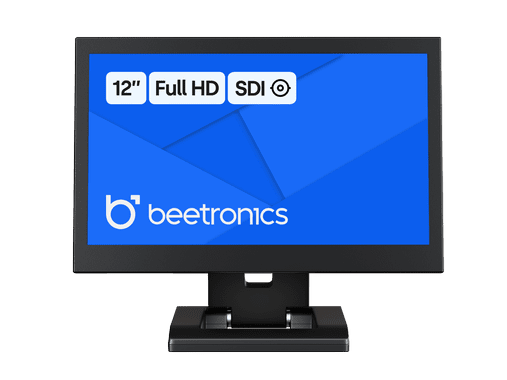

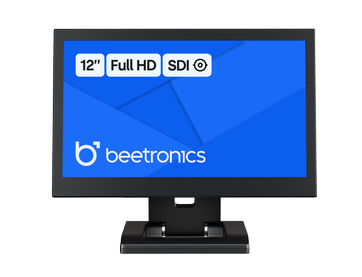

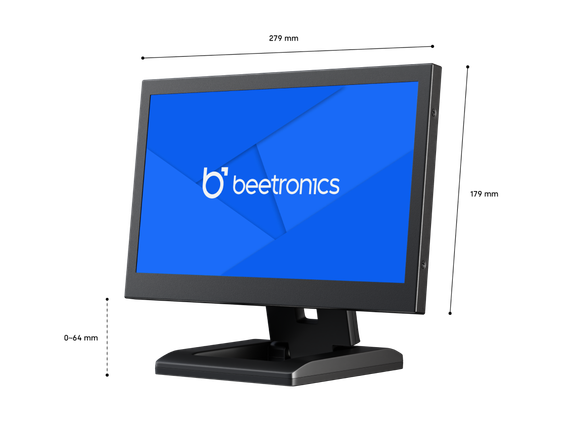

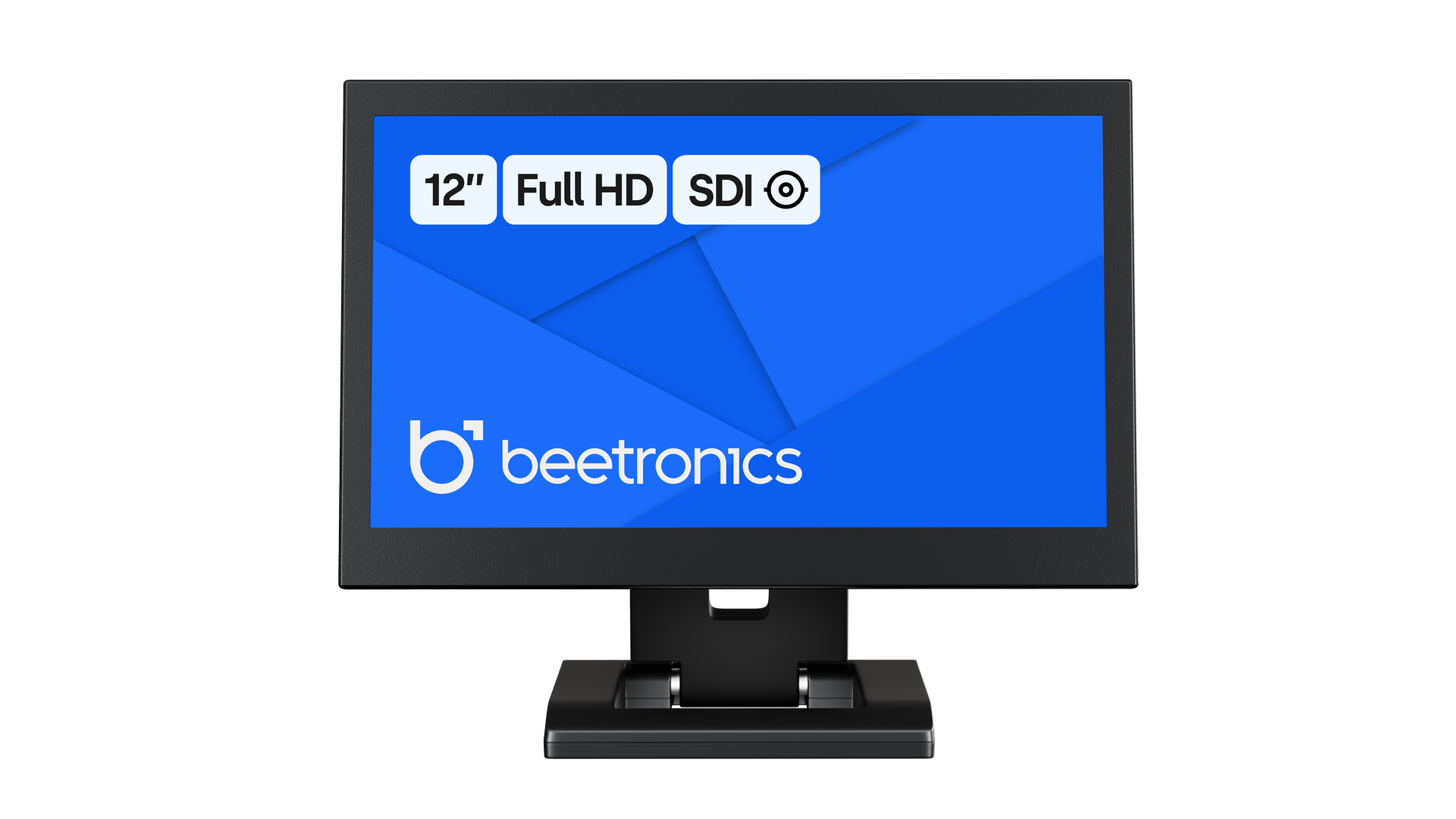

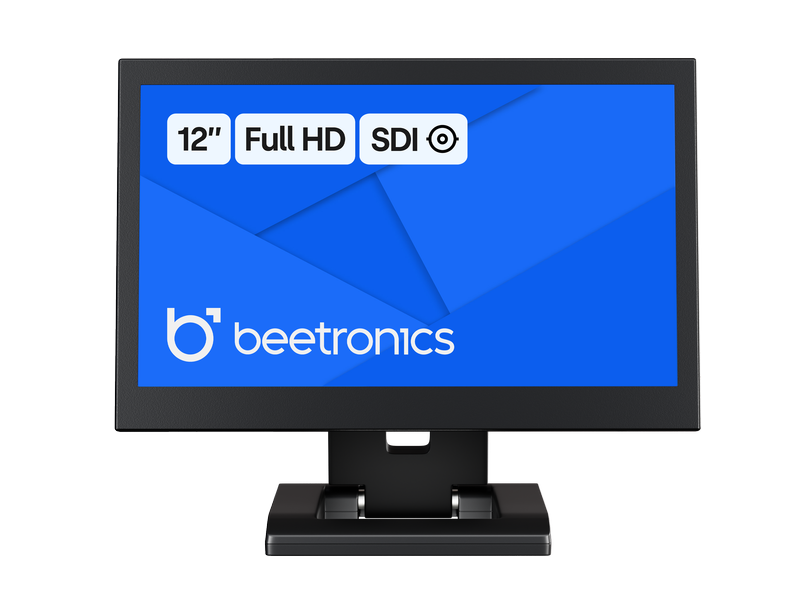

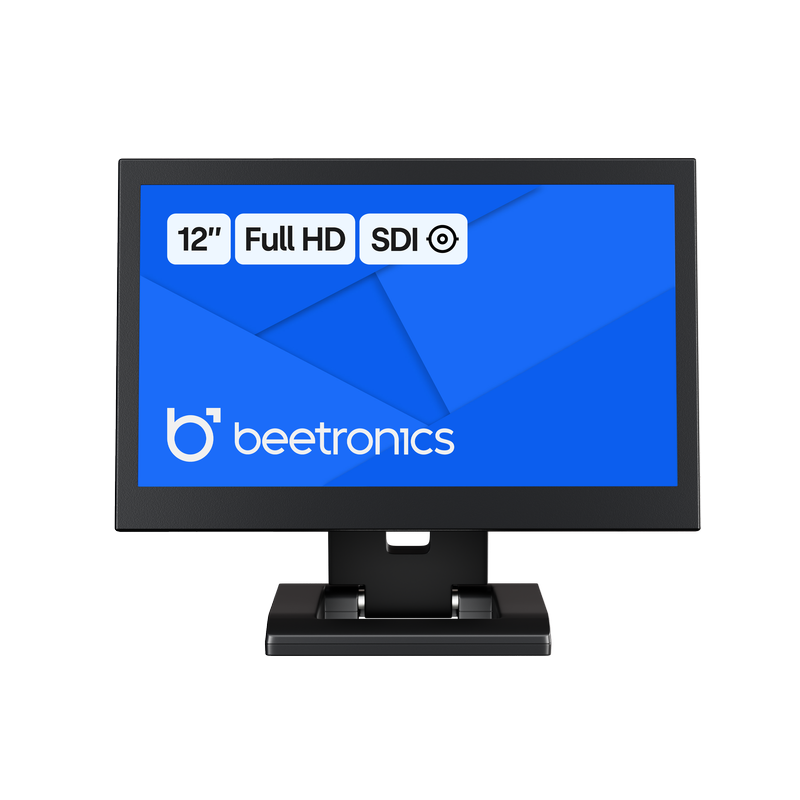

This 12 inch monitor has a sturdy metal housing and is suitable for desktop, flush-mounted and wall mounting. The monitor is equipped with a Full HD IPS panel which ensures an excellent viewing angle and a razor-sharp image reproduction. The 12SDI7M can be easily connected via both the HDMI input and output and the two SDI inputs and outputs. The outputs can also be used to connect displays in series.
The 12 inch monitor is equipped with a Full HD IPS panel. This ensures a razor-sharp image reproduction, a very wide viewing angle of 178 degrees and a true-to-life color reproduction. The matte screen ensures that reflections are kept to a minimum. Contrast, color and brightness are easy to set as desired. The monitor supports all common resolutions, up to 1080P.

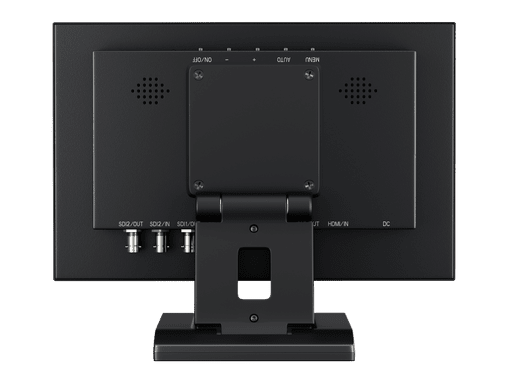

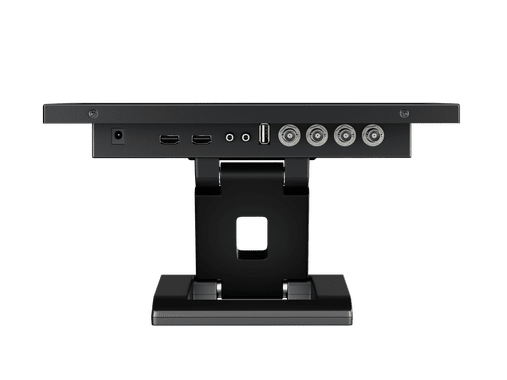

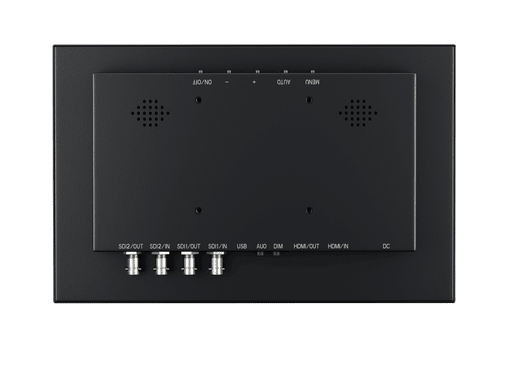

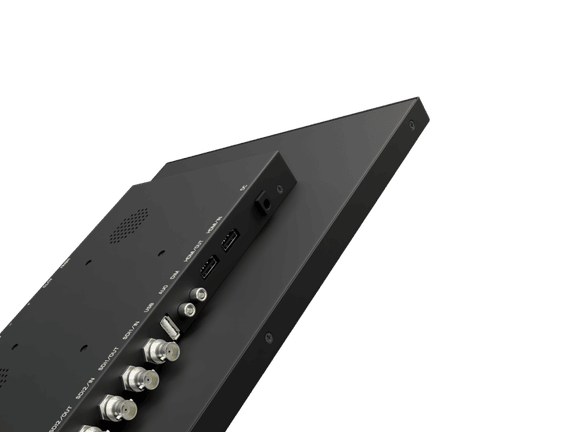

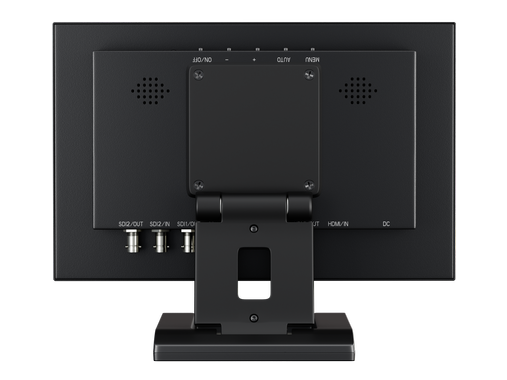

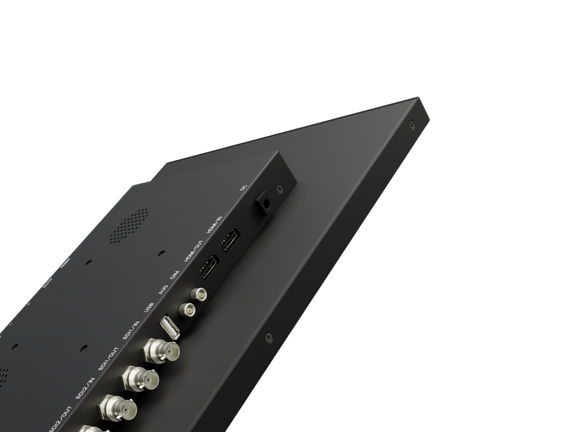

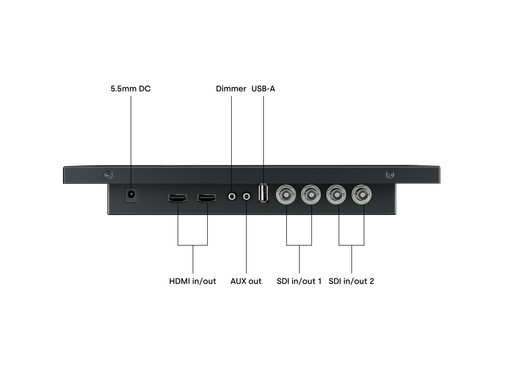

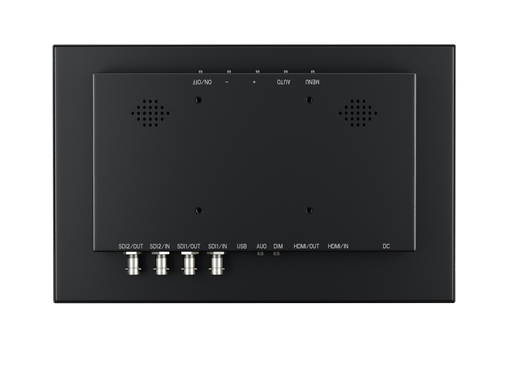

The 12 inch monitor has both an HDMI input and output and two SDI inputs and outputs. The connections are located on the back of the monitor and are directed downwards. The monitor can be set to turn on automatically when there is a power or a video signal.

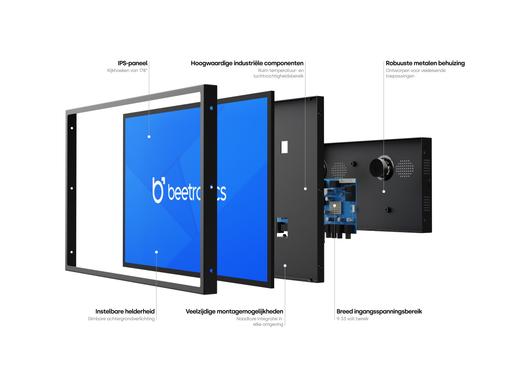

The 12SDI7M supports an input voltage of 9-28 volts and features a fully dimmable panel. The monitor is produced with high-quality components that guarantee reliable operation in any environment. The 12 inch monitor is ideal for professional applications and is suitable for continuous use.

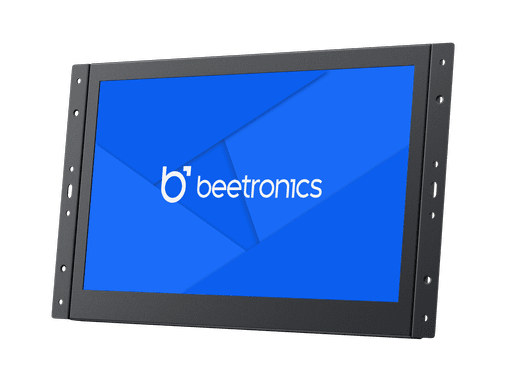

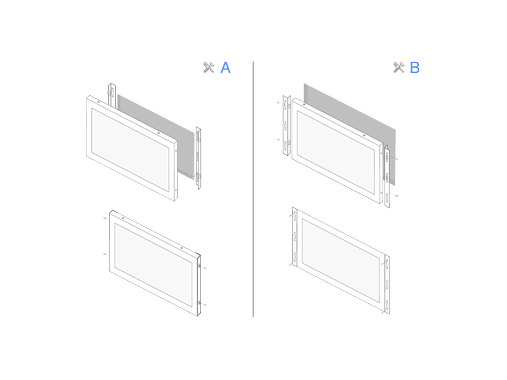

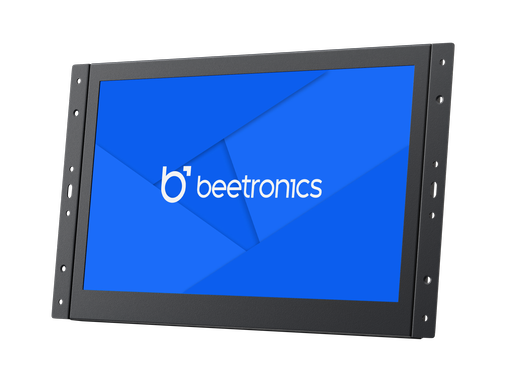

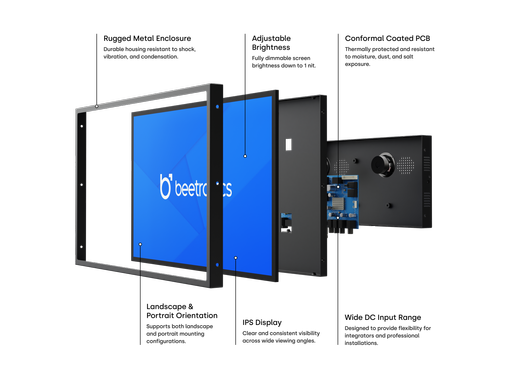

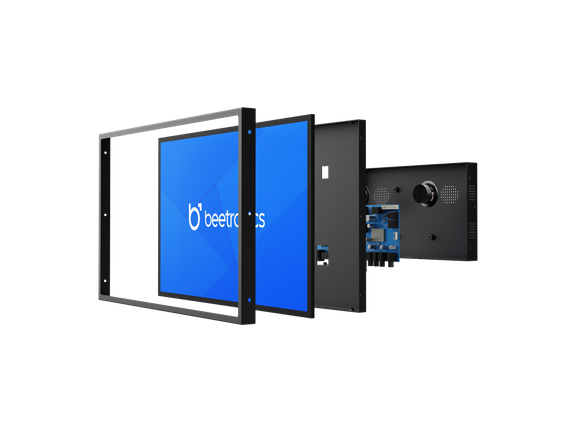

The metal 12 inch monitor can be integrated into any application thanks to various mounting options. The included mounting strips and easy-to-disassemble housing offer a variety of built-in options that allow the monitor to be seamlessly integrated into any environment.

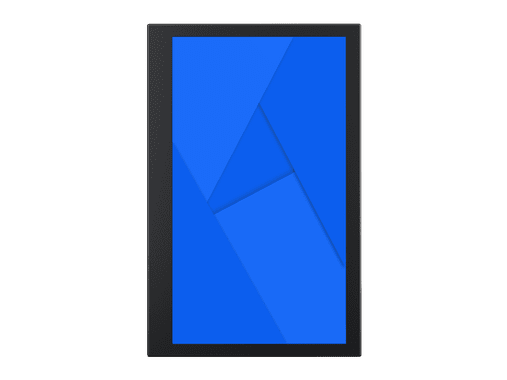

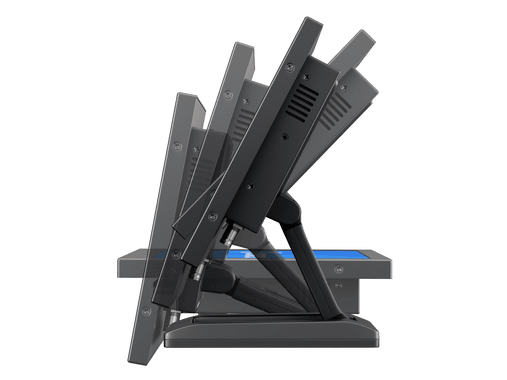

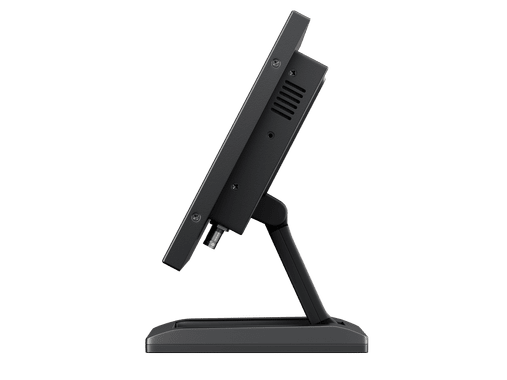

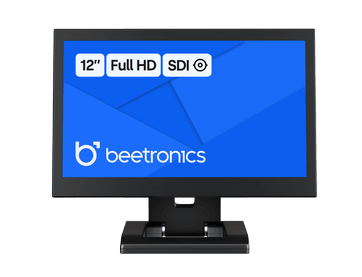

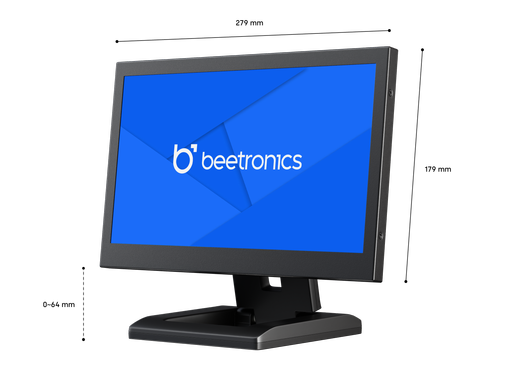

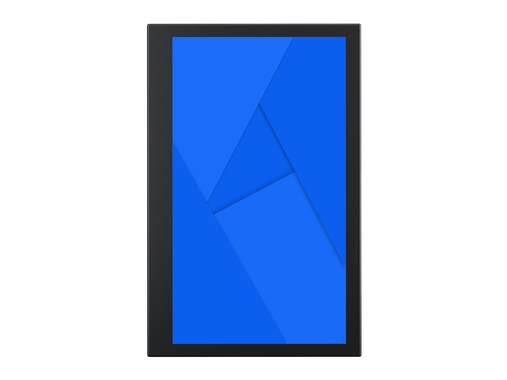

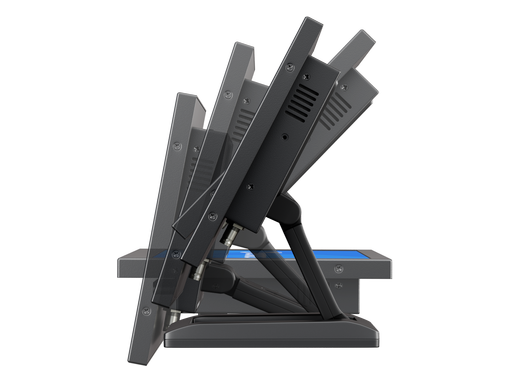

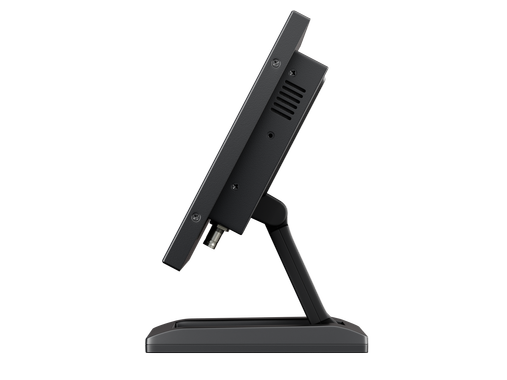

De Beetronics 12SDI7M is voorzien van een kantelbare voetsteun. De voetsteun is indien gewenst eenvoudig te verwijderen zodat gebruik gemaakt kan worden van de 75mm VESA mount. Hiermee kan de monitor bevestigd worden aan een universele muurbeugel, zowel in landscape als portrait modus.
Algemeen | |
---|---|
Fabrikant |
Beetronics
|
Artikelnummer |
12SDI7M
|
Productnaam |
12 inch monitor metaal SDI
|
Garantie |
2 jaar
|
Datasheet | |
Handleiding |
Paneel | |
---|---|
Type |
Mat, LED-IPS
|
Schermdiagonaal |
11.6 inch (296 mm)
|
Beeldverhouding |
16:9 (4:3 instelbaar)
|
Native resolutie |
1920 x 1080
|
Ondersteunde resoluties |
1920 x 1080 (max), 640 x 480 (min)
|
Pixels per inch |
184 PPI
|
Kijkhoek |
178° horizontaal, 178° verticaal
|
Kleurcoderingssysteem |
PAL/NTSC/SECAM
|
Helderheid |
350 cd/m2
|
Contrast |
700:1
|

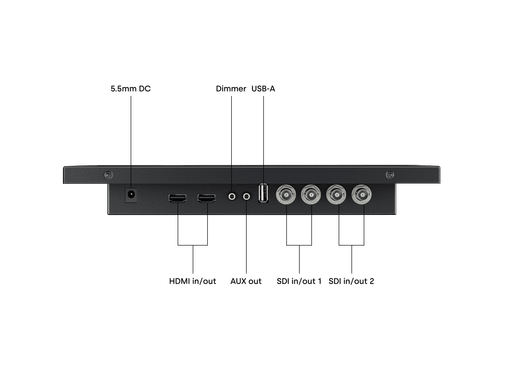

Aansluitingen | |
---|---|
HDMI ingang |
1x
|
HDMI uitgang |
1x
|
3.5mm jack ingang |
1x
|
3.5mm jack uitgang |
1x
|
USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
SDI ingang (3G) |
2x
|
SDI uitgang |
2x
|
Fysieke eigenschappen | |
---|---|
Kleur |
Zwart
|
Gewicht |
1300 gram (1700 gram met voetsteun)
|

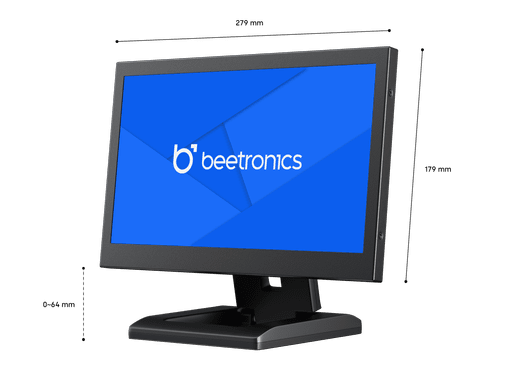

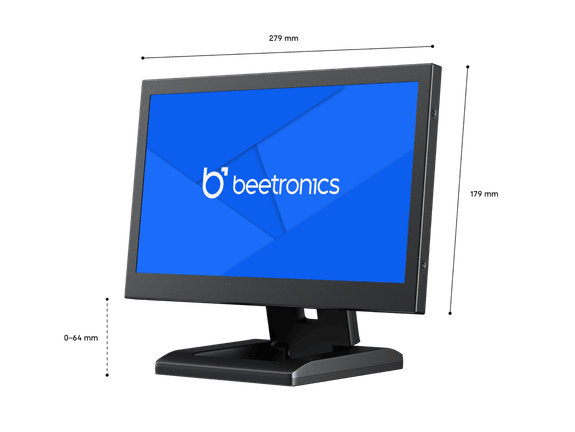

Breedte |
279 mm
|
Hoogte |
180 mm (+0 tot 39 mm met voetsteun)
|
Diepte |
34 mm
|
Afmetingen paneel |
257 x 145 mm
|
Technische tekening | |
3D tekening |
Eigenschappen en functies | |
---|---|
Audio |
Geïntegreerde speakers
|
Toetsblokkering |
Vergrendelbare bedieningsknoppen
|
Auto-on |
Automatisch aan bij stroom/signaal
|
Dimbaar backlight |
Instelbare helderheid
|
Spiegelfunctie |
Beeld is horizontaal en verticaal te spiegelen
|
Energie | |
---|---|
Ingangsspanning |
DC 9-28V
|
Netadapter |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Energieverbruik |
19.8 Watt
|
Omgeving | |
---|---|
Bedrijfstemperatuur |
-20°C tot +60°C
|
Opslag temperatuur |
-20°C tot +70°C
|
Luchtvochtigheid |
20% - 90% niet-condenserend
|
Montage | |
---|---|
Wandmontage |
VESA (75 mm)
|
Inbouw |
2 Montagestrips meegeleverd
|
Voetsteun |
Verstelbaar & afneembaar
|
Certificeringen & keurmerken | |
---|---|
Certificeringen |
CE, FCC, RoHS, REACH, UKCA
|

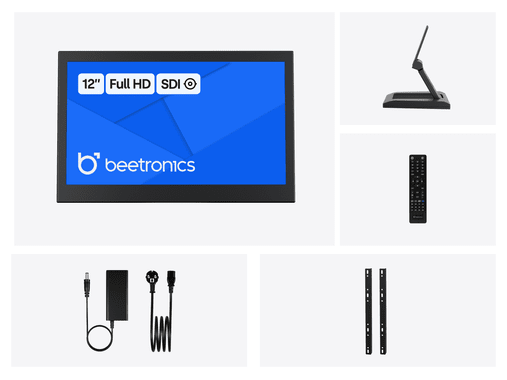

Inhoud verpakking | |
---|---|
Standaard inbegrepen |
Monitor, Netadapter, Afstandsbediening, Montagestrips, Voetsteun, Handleiding
|
Handleiding | Download PDF |
Technische tekening | Download PDF |
3D tekening | Download CAD/STP |
Datasheet | Download PDF |
